Cast Iron Valves

  • DIN-Cast-Iron-Ball-Check-Valve-PN10-PN16-GGG50

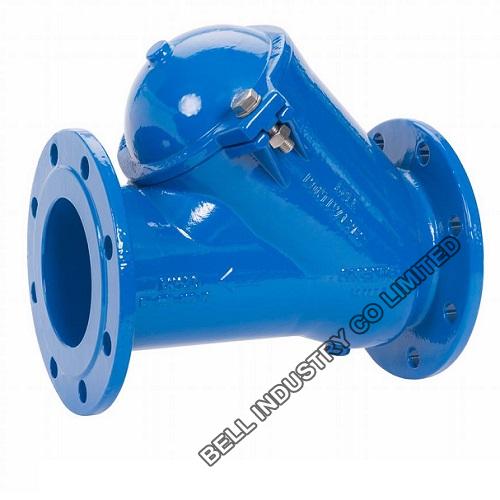

DIN-Cast-Iron-Ball-Check-Valve-PN10-PN16-GGG50

DIN-Cast-Iron-Ball-Check-Valve-PN10-PN16-GGG50

  • Design Std: DIN 3352,EN 12050-4
  • Size:DN40--DN300
  • Pressure Rating: PN10,PN16
  • Face to Face:EN 558 Seri 48 / DIN 3202 F6
  • Description: DIN-Cast-Iron-Ball-Check-Valve-PN10-PN16-GGG50, Design Std: DIN 3352,EN 12050-4, Size:DN40--DN300, Pressure Rating: PN10,PN16
  • INQUIRY   EMAIL
DIN-Cast-Iron-Ball-Check-Valve-PN10-PN16-GGG50

ball check valve in which closing member, movable part to block the flow, is a spherical ball a floating ball valve, it can be used in Steam, Hot Water, Cold Water, Fluids without acidity or alkalinity properties, Pressurized Air

-Design Std: DIN 3352,EN 12050-4
-Size:DN40--DN300
-Pressure Rating: PN10,PN16
-BODY: EN-GJL-250 CAST IRON (GG25)
-FLANGED: EN 1092-2 / ISO 7005-2, PN10/16, AS4087 (AS2129 Table E)
-Face to Face:EN 558 Seri 48 / DIN 3202 F6
-Hydraulic test according to EN12050-4.
-Working temperature: -10°C to +150°C;
