Cast Iron Valves
DIN Cast Iron Lift Check Valve-PN10-PN16-GG25
- Design Std: EN 12334/BS5153/DIN2533
- Size:DN15--DN300
- Pressure Rating: PN10,PN16
- BODY EN-GJL-250 CAST IRON (GG25)
- Description: DIN Cast Iron Lift Check Valve-PN10-PN16-GG25,Face to Face:EN 558 Seri 1 / DIN 3202 F1 F6,Pressure Testing:DIN EN593/DIN EN12266-1
-

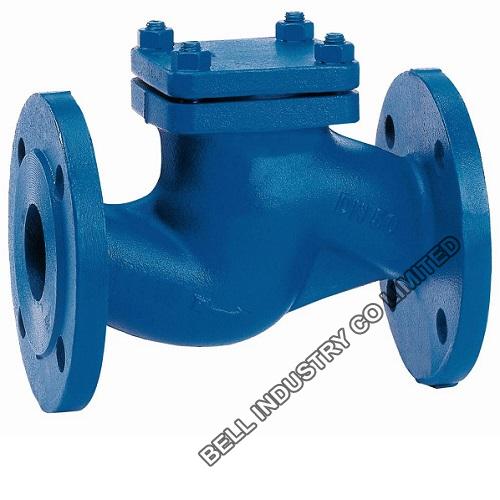

DIN Cast Iron Lift Check Valve-PN10-PN16-GG25
Check valve is a backflow prevention device: it allows flow in only one direction. Lift check valves can be used for used in horizontal and vertical position due to the sealing is achieved by the spring.
-Design Std: EN 12334/BS5153/DIN2533
-Size:DN15--DN300
-Pressure Rating: PN10,PN16
-BODY EN-GJL-250 CAST IRON (GG25)
-FLANGED: EN 1092-2 / ISO 7005-2
-Face to Face:EN 558 Seri 1 / DIN 3202 F1
-Pressure Testing:DIN EN593/DIN EN12266-1
-Top Mounting Flange: ISO 5211
-Working temperature: -20°C to +200°C;
