Cast Iron Valves

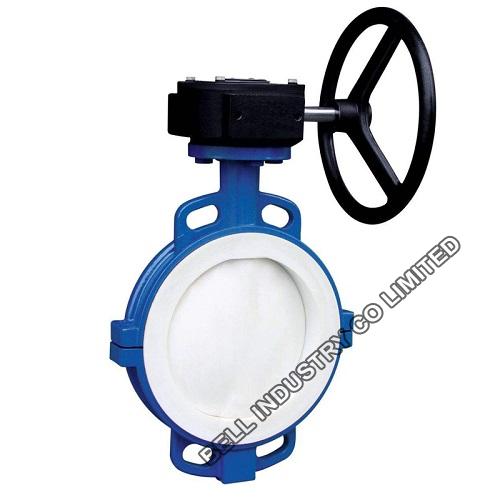

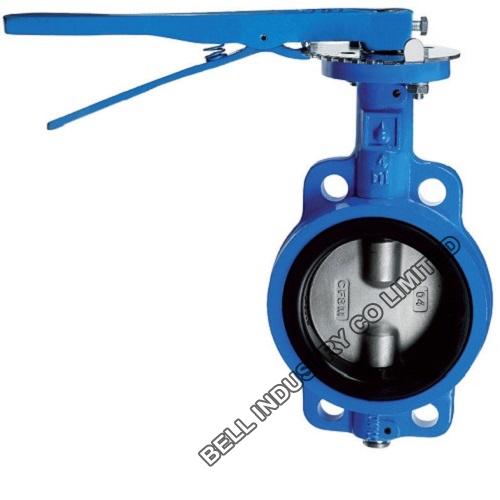

JIS 10K/5K wafer butterfly valve
- Flange : JIS 5K/10K,
- End Type：wafer type
- DN：50mm-400mm
- PN：5K/10K/16K
- Description: JIS 10K-5K wafer butterfly valve
-
JIS 10K/5K wafer butterfly valve
-End Type：wafer type
-DN：50mm-400mm
-PN：5K/10K/16K
-Flange : JIS 5K/10K, ANSI 150LBS, PN 6/10/16
-Design Standard：JISF7400
-End Standard：JISB2220
Main Material
-Body/Bonnet: Cast iron/Ductile Iron/Cast steel/Cast bronze
-Disc: Ductile Iron/Stainless Steel/AL-Bronze
-Seat: NBR/EPDM/VITON/METAL
-Stem: SS/BS
Option:
LUG BODY
FLANGED BODY
