Flanges

  • ASME / ANSI B16.5 / ASME B16.47 Flange
ASME / ANSI B16.5 / ASME B16.47 Flange

ASME / ANSI B16.5 / ASME B16.47 Flange

  • Forged Steel Flange Size Range from 1/2
  • 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000
  • Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
  • Stainless steel A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc.
  • Description: ASME / ANSI B16.5 / ASME B16.47 Flange, ANSI B16.5,ANSI B16.47 A/B
  • INQUIRY   EMAIL

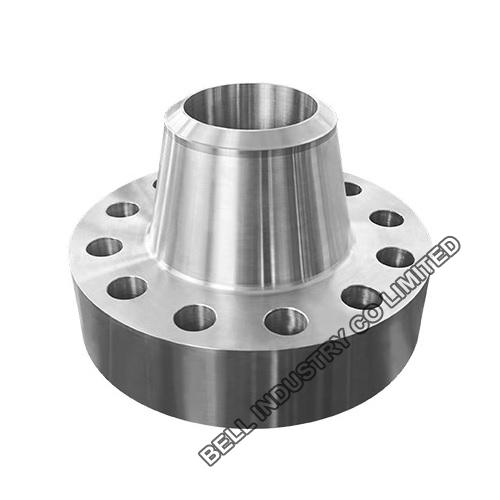

ASME - ANSI B16.5 - ASME B16.47 Flange


Forged Steel Flange Size Range from 1/2" to 72"(15mm to 1800mm)

-Material:
--Stainless steel: ASTM A182 F304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/904L/ etc;
--Carbon steel: ASTM A105/A105N/A694F42/46/52/56/60/65/ 70 / A350 LF3/ A350 LF2,ST37.2, S235JR, C22.8, Q235, P250GH, RST37.2 etc.
--Alloy steel: ASTM A182 F1/ F5/ F9/ F11/ F22/ F91/ etc.
--Others:Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc

-Standard:ASME / ASME B16.47,ASME / ANSI B16.5,

-Type: Blind, Welding Neck, Long Welding Neck, Socked Weld, Lap Ring Joint, Threaded, Slip On, Plate, Orifice
