Gasket And Packing

  •  Asbestos Free Flat Compressed Rubber Gasket
 Asbestos Free Flat Compressed Rubber Gasket

Asbestos Free Flat Compressed Rubber Gasket

  • Temperature +200° C
  • Max Pressure: 12 MPa
  • Max Tensile strength: 18MPa
  • Description: Asbestos Free Flat Compressed Rubber Gasket
  • INQUIRY   EMAIL

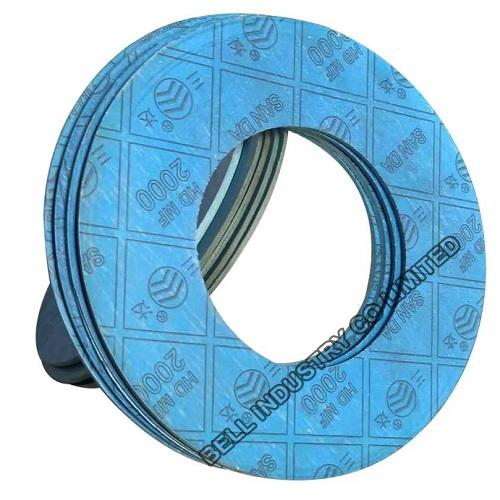

 Asbestos Free Flat Compressed Rubber Gasket


Asbestos rubber gasket or non-asbestos gasket is made from asbestos fiber or aramid and other organic fiber, vegetable fibre, NBR rubber and assisted with rubber accessory ingredient and filing through mixing, hot-roller molding and sulfuration. It is divided into commonr gasket and oil-resistant gasket according to its prescription, technology, performance and use. It is suitable for water, steam, oil, solvent, medium acid and alkaline sealing.

Made from Aramid fiber, mineral fiber, and inorganic fillers bonded with synthetic NBR elastomers.

Max. Peak Temp. 570°F
Max. Continuous Temp. 428°F
Max. Continuous Temp. w/steam 320°F
Max. Operating Pressure 1137 psi

-Class 150 to 900 NPS 1/2 to 24
-Dimensions of Non-Metallic Flat Gaskets, ASME B16.21 to be used with Raised Face flanges ASME b16.5
