SCH Butt Welded Fittings

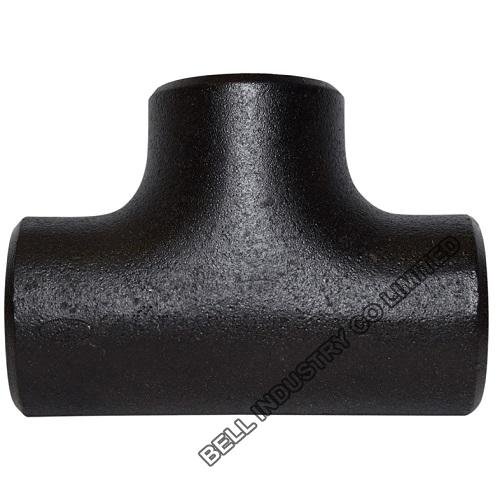

  • Butt welding Straight Tee-ANSI ASME B16.9
Butt welding Straight Tee-ANSI ASME B16.9

Butt welding Straight Tee-ANSI ASME B16.9

  • Size: 1/2"-60" seamless,26"-110"welded
  • Standard: ANSI B16.9,MSS SP 43, DIN2615, EN10253, GOST17376, JIS B2313, MSS SP 75, etc.
  • Wall thickness STD:XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
  • Type Equal/Straight tee,reduced tee,Y tee,lateral tee,Barred tee,split tee,tee cross
  • Description: Butt welding Straight Tee-ANSI ASME B16.9, ASME B16.9 - NPS8 - 48. butt welded Tees ,Reducing & Straight. Schedule 40 Butt-Weld Steel

Butt welding Straight Tee-ANSI ASME B16-9

-Dimension Standards: ANSI-ASME B16.9 - EN 10253, B16.28 - B16.25, BS 1640,JIS B2311,B2312,B2313
-Type: Elbow 30°,45°,60°,90°,180° (Return);
-Radius: 1D (short radius), 1.5D (long radius), 3D, 5D or large radius, etc
-Sizes Available: 1/4" through to 64"
-Wall Thickness: Schedule 5s through to Schedule XXS and heavier.

-ANSI Material Grades:
--Stainless Steel: A403WP 304/L/H, 310/H, 316/L/H, 321/H, 347/H, 410, 440, 904L
--Carbon Steel:A234 WPB, WPC
--Low Temperature Steel:A420 WPL6, WPL3
--Alloy Steel:A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
--High Yield:WPHY42, 52, 60, 65, 70
--Duplex & Super Duplex:A815 UNS31803, UNS31254, UNS S32760
--Nickel Alloys:200, 400, 600, 625, 800, 825
--Alloys:ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2

European Material Material Grades:
--P250GH, P265GH
--16Mo3, 13CrMo4-5
--L290NE, L360NE
--1.4301, 1.4306, 1.4307, 1.4541
--1.4401, 1.4404, 1.4571
--1.4410 (Superduplex), 1.4462 (Duplex)
--1.4529, 1.4539, 1.4547

Cutting, bevelling, turning, blasting, coating and marking for all requirements according to customer specification
