Forged Steel Valves

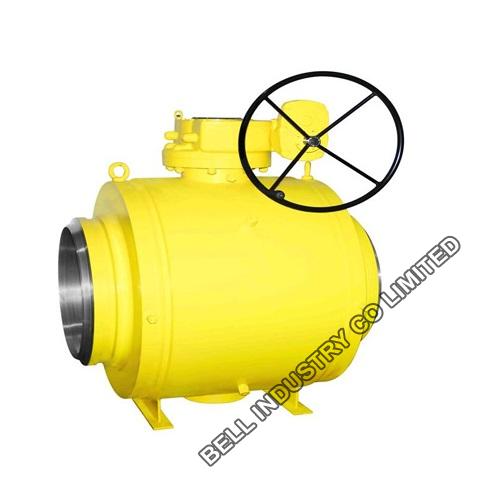

Forged steel FULL WELDED TRUNNION BALL VALVEPN16-PN25-150LBS

Valve size:2"-60"(DN50-DN1500)
Pressure range:Class150~2500(PN16~PN420)
Body material: A105,LF2,F304,F304L,F316,F316L,F321,F51,F53
Design standard: ASME B16.34/API 6D/BS 5351
Description: Forged steel FULL WELDED TRUNNION BALL VALVEPN16-PN25-150LBS, Pressure range:Class150~2500(PN16~PN420), suitable for Oil & Gas production, processing, transportation, distribution, chemical and petroc
INQUIRY EMAIL

Forged steel FULL WELDED TRUNNION BALL VALVEPN16-PN25-150LBS

-Valve size:2"-60"(DN50-DN1500)
-Pressure range:Class150~2500(PN16~PN420)
-Working temperature: -180ºC~ 800ºC
-Body material: A105,LF2,F304,F304L,F316,F316L,F321,F51,F53
-Operation: Wrench, worm gear, electric , pneumatic , gas over oil actuator and electro-hydraulic actuator.

Technical Specifications
-Design standard: ASME B16.34/API 6D/BS 5351
-Face to face standard: ASME B16.10
-Flange ends: ASME B16.5,ASME B16.47
-Fire safe design: API 607,API 6FA
-Pressure test: API 6D,API 598,
