Forged steel Socked-Threaded Fittings

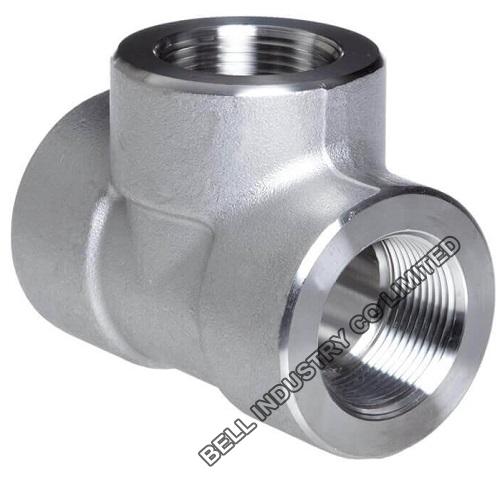

  • Forged steel Screwed Tee -3000LB 1500LB
Forged steel Screwed Tee -3000LB 1500LB

Forged steel Screwed Tee -3000LB 1500LB

  • 1/2" to 4"(DN15~DN100)
  • Standard : ASME/ANSI B16.11 MSS SP-79, MSS SP-83, MSS SP-114 JIS B2316, JIS B2302 etc.
  • Material: Carbon steel (or galvanized), stainless steel, alloy steel etc.
  • Description: Forged steel Screwed Tee -3000LB 1500LB, -Rating Pressure --Threaded End – 2000 / 3000 / 6000 LBS. --Socket-weld End – 3000 / 6000 / 9000 LBS. --Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.
  • INQUIRY   EMAIL

Forged steel Screwed Tee -3000LB 1500LB


-Type:Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Plug, Bushing, Union, HEX. Nipple, Swage nipple, Bull Plug, Street Elbow, Boss, Reducer Insert and Out-let…etc
-Connection: NPT or BSP Screwed, Socket-Weld, Butt-welding
-Size: NPS 1/8"--4" (DN 6-100)
-Rating Pressure
--Threaded End – 2000 / 3000 / 6000 LBS.
--Socket-weld End – 3000 / 6000 / 9000 LBS.
--Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.


-Specifications
--Dim. Spec. :
ASME B16.11-2009 (Revision of ASME B16.11-2005) MSS – SP – 79, 83, 95, 97 and BS3799.
ANSI / ASME B1.20.1-1983 NPT
--Material Spec. :
ASTM A105, A350 LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
--Size of Raw Material: DIA. 19~85mm Round Bar.


-Marking
--Carbon and Alloy Steel: Marked by stamping.
--Stainless Steel: Marked by electro-etched, jet printed or stamping.
--3/8” under: Brand only.
--1/2” to 4”: Marked with brand, material, heat code, B16 (For ASME B16.11 product), pressure and size.


-Finishing: Carbon steel: Galvanized or black. Stainless steel: Pickled.
