Hygienic Pipe Fittings

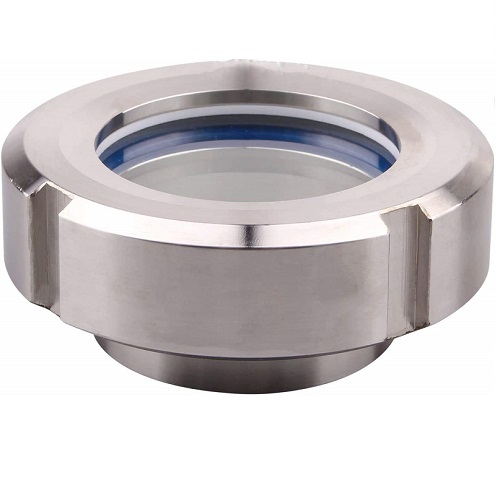

Hygienic Union type Sight Glass- DIN11851 SMS union end
- DIN11851 union end sight glass
- Available in sizes: 1" to 4" OD weld ends.
- Availably standard:SMS,DIN,3A,IDF,RJT, BS, ISO
- Material:AISI304(1.4301) AISI 316L(1.4404)
- Description: Hygienic Union type Sight Glass- DIN11851 SMS union end, DIN11851/SMS made in stainless steel 304 or 316L,Size: 1"-6" DN25-150.
-
Hygienic Union type Sight Glass- DIN11851 SMS union end description:
-Type:Straight Union Sight Glass
-Available in sizes: 1" to 4" OD weld ends.
-Availably standard:SMS,DIN,3A,IDF,RJT, BS, ISO
-Material:AISI304(1.4301) AISI 316L(1.4404)
-Connection: weld, clamp, thread, DIN, SMS, IDF
-Gaskets material: NBR, EPDM, FPM in accordance with FDA177.2600
-Availabe Connection:Welding ends,triclamp ends,union ends,male ends
-Seal Material Silicone, EPDM, Viton, NBR Glass Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
-Pressure range 0bar~10bar
-Machine Processing:The most advanced CNC machine from Japan for processing
Continuous
-working temperature:20°C ~ +135°C (EPDM,Silicone)
