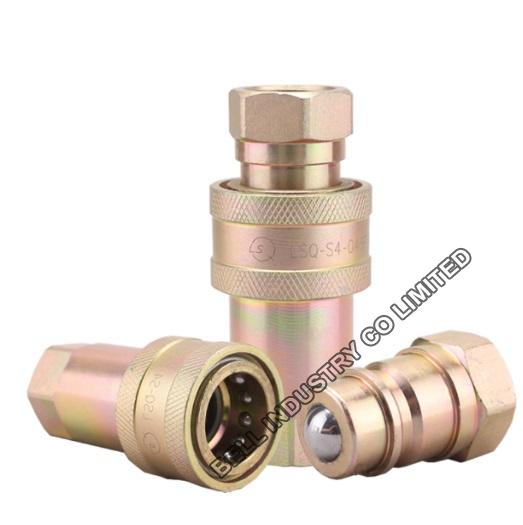

ISO 5675 Hydraulic Quick Coupling

The ISO 5675 series hydraulic quick coupling features a rugged steel ball valving architecture designed for reliable fluid isolation in medium-to-high pressure oil pump circuits and agricultural machinery. Constructed from high-tensile carbon steel and treated with a protective yellow zinc plating, this double shut-off coupler automatically seals both the plug and socket paths instantly upon disconnection. Its standard ball-lock sleeve mechanism facilitates quick and dependable connect/disconnect cycles, making it a highly durable solution for demanding mobile equipment and industrial hydraulic lines.

Technical Specifications

• Standard Conformance: Fully compliant with ISO 5675 and ISO 7241-B dimensional profiles

• Valving Architecture: Double Shut-Off Heavy Duty Steel Ball Valving System

• Structural Material: High-Strength Tough Carbon Steel

• Plating Treatment: Yellow Zinc Plating (Zinc Dichromate Coating) for superior rust defiance

• Locking Device: Hardened steel locking balls for uniform mechanical engagement

• Connection Interface: Quick disconnect pull-back sleeve operational design

• Thread Port Formats: High-precision Female NPT / BSP / BSPP threads

• Body Size Availability: Offered in standard industrial dimensions including 1/2 inch

• Primary O-Ring Seal: High-grade Nitrile (NBR) rubber elastomer compound

• Extrusion Protection: Premium PTFE backup ring to handle heavy pulsating shifts

• Fluid Accommodation: Recommended for mineral-based hydraulic oils, fluids, and lubricants

• Leakage Integrity: Precise ball valve seating guarantees zero-drop performance on decoupling

• Internal Geometry: Streamlined flow paths optimize fluid movement and lower backpressure

• Wrench Drive Profile: Integrated robust hex flats for straightforward torque tightening during assembly

• Fatigue Performance: Rated to safely endure heavy mechanical vibrations and pressure impulses

• Thermal Capabilities: Continuous operational efficiency across wide standard industrial temperature ranges

• Sleeve Grip Surface: Patterned diamond knurling ensures firm handling during greasy field operations

• Dust Cap Integration: Readily compatible with protective PVC, rubber, or metal dust plugs and caps

• Interchange Equivalency: Fully interchanges with standard international ISO 5675 agricultural profiles

• Assembly Alignment: Precision internal machining prevents binding and maintains axial alignment

• Quality Verification: 100% factory hydrostatic proof and functional integrity inspected
