Cast Iron Valves

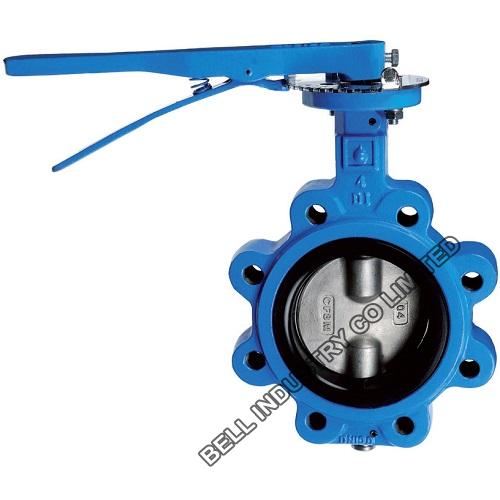

LUG Butterfly Valves-Ductile iron-PN10 PN16
- Design Std:EN 1074, EN593,EN558-1, API609
- Size:DN25--DN600
- Pressure Rating: PN10,PN16
- Body: Ductile Iron GGG40/50 or Cast Iron GG25
- Description: LUG Butterfly Valves-Ductile iron-PN10 PN16,Designed and manufactured in accordance with DIN EN 593 . Bi-directional bubble tight seal, vulcanised seat, suitable for vacuum applications.
-
LUG Butterfly Valves-Ductile iron-PN10 PN16
-Design Std:EN 1074, EN593,EN558-1, API609
-Size:DN25--DN600
-Pressure Rating: PN10,PN16
-Body: Ductile Iron GGG40/50 or Cast Iron GG25
-DISC: Ductile Iron, Cast Iron. SS304 (CF8) Stainless steel
-Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
-Pin: Stainless Steel
-Face to Face: EN 558-1,ISO 5752, API609.
-Operate: Handwheel or Worm Gear, Actuator or pneumatic.
-Pressure Testing:DIN EN593/DIN EN12266-1
-Top Mounting Flange: ISO 5211
-Working temperature: EPDM from -40°C to +135°C ; NBR from -23°C to +82°C; VITON from -26°C to +230°C; PTFE from -25°C to +150°C
Flange end:
BS 10 Table D/Table E
DIN 2501 PN10/16,JIS2220 5K/10K
BS4504 PN10/PN16
ASME B16.1 CLASS 125&B16.42 cLASS 150 ISO 7005-S PN10/PN16
