Stainless Steel Flanged Valves

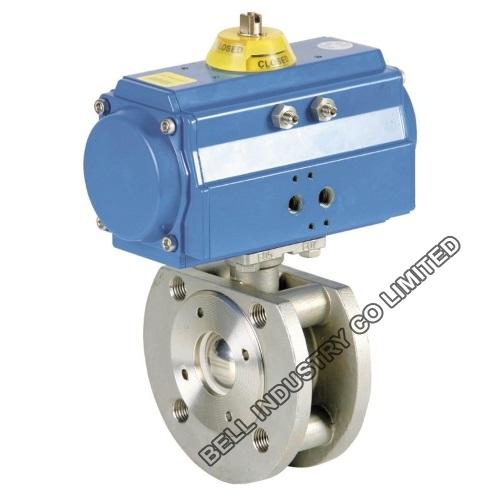

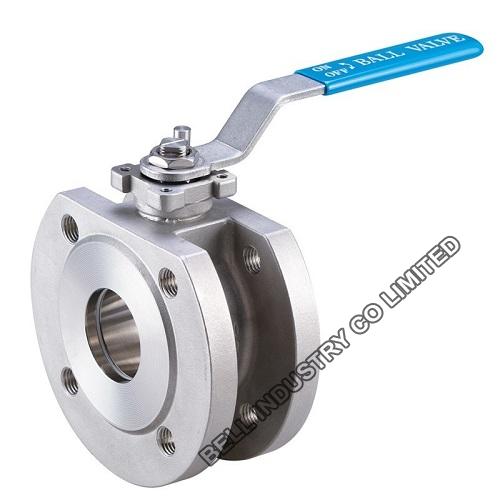

PN16 Stainless Steel wafer ball valve
- Full Bore, 1/2" to 6"
- Wafer type PN16 flanged
- Description: PN16 Stainless Steel Ball Valve Wafer Pattern. Flanged Ends Wafer Type PN16; Offer full bore flow within a short body length offering weight, space and cost savings
-
PN16 Stainless Steel wafer ball valve Description:
-PRESSURE: PN16
-Size: 1/2"-6"
-FACE-TO-FACE: Face to Face: ANSI B16.10,JIS B2002,EN558
-High Quality Investment Casting Body and Caps
-15% Reinforced Glassfibre Teflon Seat
-Flange Dimensions : DIN 2633-PN16. DIN2635-PN40;
-Fire Safe Design: API607
-DESIGN: Design Standard: ASME B16.34/API 608
-With ISO Direct Mounting Pad
-100% Tested air-Under water at 100 PSI(6 Bars) Open & Close Position
-TEST: GB/T13927-1992
-Material: CF8(SS304)/CF8M(SS316)/CF3M(SS316L)/WCB
