Stainless Steel Flanged Valves

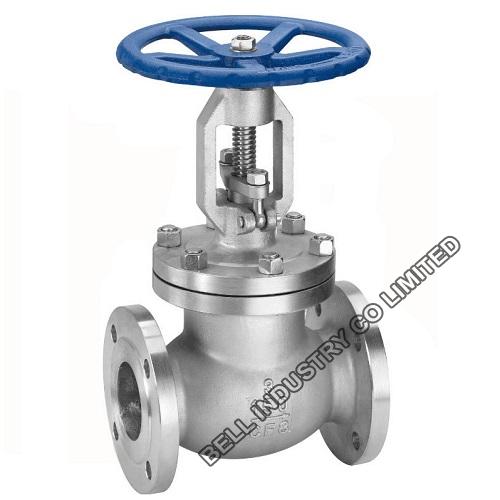

150 lb stainless steel flanged globe valve
- Size:1/2"~24".DN15~DN600
- Pressure:150LB,300LB,600LB,900LB
- Body, bonnet: CF8,CF8M, WCB,WC6,WC9, GS-C25
- FLANGED: ASME B16.5 & ASME B 16.47A
- Description: manufacturer of 150 lb stainless steel flanged globe valve, OS&Y, straight pattern, stainless steel trim.
-
150 lb stainless steel flanged globe valve specification Details
-Design STD: ASME 16.34
-Size:DN40--DN600
-Bolted Bonnet – Pressure Seal – Cryogenic – Bellow Sealed
-Body, bonnet: CF8,CF8M, WCB,WC6,WC9, GS-C25
-Pressure Rating: Class 150LB-1500LB
-FLANGED: ASME B16.5 & ASME B 16.47A
-Face to Face: ASME B 16.10
-Pressure Testing: API 598, API 6D
-Working temperature: Max. +425°C
FEATURES
-Teflon Or Graphite Packing And Gaskets
-Fugitive Emission Tested
-Round Bonnet Gaskets Totally Contained
OPTIONS
Mounting Pads For Actuation
-API 600 Heavy Wall
-Soft Seats Available
-Stop Check Design
-Angle Pattern
-Buttweld Ends Available
