Stainless Steel Flanged Valves

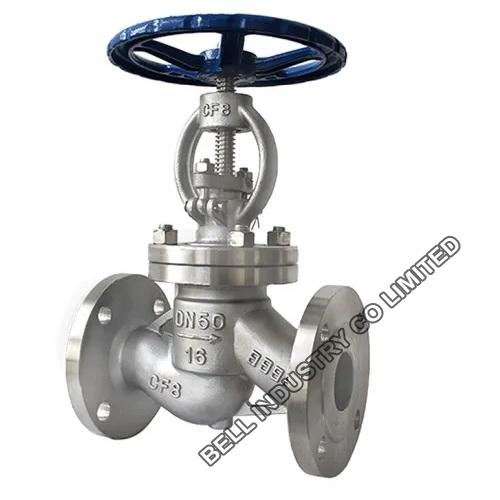

DIN F1 Stainless Steel Globe valve PN40
- Pressure rating: PN16/PN40/PN63
- Material: GS-C25 1.0619, 1.4308, 1.4408, 1.7380, 1.7706 etc.
- Size: DN15-DN300
- Face to Face: EN 558 Seri 1,2 / DIN 3202 F1,F2
- Description: manufacturer of DIN F1 Stainless Steel Globe valve PN40, Face to face DIN 3202 F1, Pressure rating PN16-PN25-PN40-PN64,
-
DIN F1 Stainless Steel Globe valve PN40 Specification Details
-Design STD:EN 1074,EN13709, EN12516,DIN 3356
-Size:DN15--DN300
-Body, bonnet: CF8,CF8M, WCB, GS-C25
-Pressure Rating: PN16--PN64
-FLANGED: 1092-2 / ISO 7005-2 / DIN2543-2545, DIN 2501
-Butt welding standard: DIN3239
-Face to Face: EN 558 Seri 1,2 / DIN 3202 F1,F2
-Pressure Testing: EN 12266-1,DIN3230
-Working temperature: Max. +425°C
-Test & Inspect: DIN3230
