Gasket And Packing

  • Acrylic Teflon Gland Packing
Acrylic Teflon Gland Packing

Acrylic Teflon Gland Packing

  • Density:1.3g/cm³
  • PH range:1~13
  • Temperature:-50ºC~+260ºC
  • Description: Acrylic Teflon Gland Packing,Acrylic Fiber Packing with PTFE, High elastic red silicone rubber core can absorb vibration, to control leakage, suitable for worn-out pumps.
  • INQUIRY   EMAIL

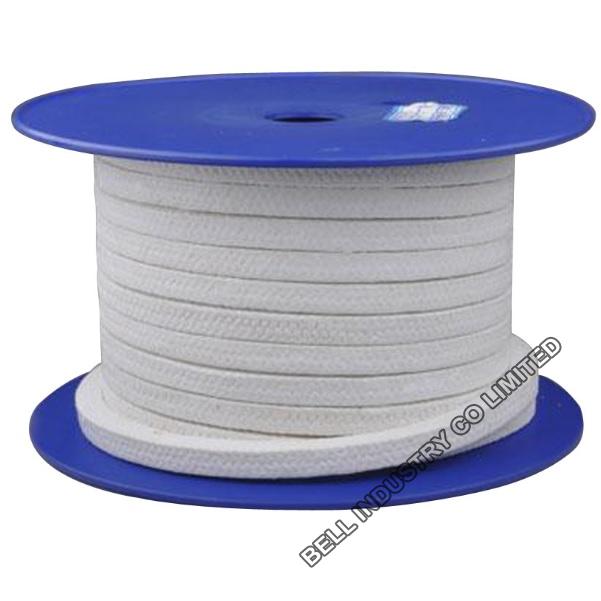

Acrylic PTFE packing

Acrylic PTFE packing is braided of reinforced acrylic fiber impregnated with PTFE dispersion, its a kind of high-strength, corrosion-resistant, and scour-resistant sealing material, an ideal replacement of asbestos packing. Its not only widely used in pumps, valves, kettles with high line speed and pressure, but also in sealing of liquid container. We can also make acrylic PTFE packing with silicon core. This packing has superior application in old equipments because of its good compressibility and recovery rate.

Application conditions:
-Max. Working temperature: -100 oC ~+120 oC
-Max. Working pressure: 2Mpa (rotary pump)
-Max. Working pressure: 8Mpa(reciprocating pump)
-Max. Working pressure: 15Mpa(valve)
-pH value: 2-12
-Linear speed: 12m/s(rotary pump)
-Linear speed: 2m/s(reciprocating pump)
-Linear speed: 2m/s(valve)
-Cross Section: ≥ 1/8 ~ ≤ 3(3X375X75mm)
-Density: 1.10 ~ 1.20g/cc
