Stainless Steel Screwed end Valves
Air Actuated Stainless 3-Piece Ball Valve
- Full port, 1/2"-4"(DN15-DN100)
- Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas,
- Investment casting
- Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226
- Description: BELL Industry supply air actuated 3-piece stainless steel ball valves in sizes 1/2" to 4", BSP, NPT or Socket Weld connections, design for easy maintenance,used for on-off control of air, water, oil.
-
Product Description

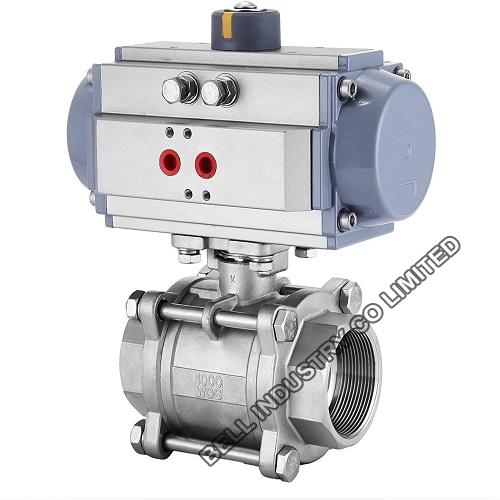

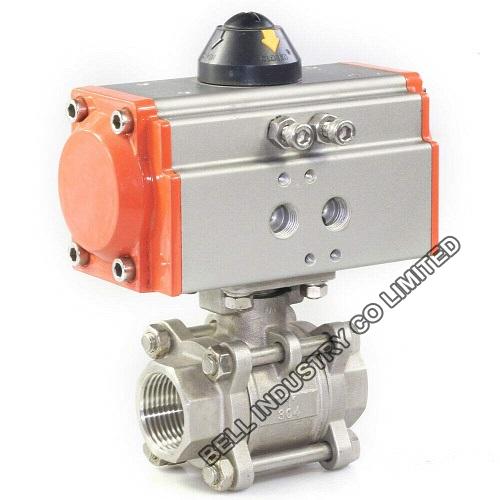

Air Actuated Stainless 3-Piece Ball Valve
Actuator:Single or double acting;
Acessories: solenoid valve,limit switch box,positioner;
Actuator pressure:0.3--0.8MPa;
Mounting Pad: ISO 5211 direct mounting;
Material: CF8(304),CF8M(316),CF3(304L),CF3M(316L);
Seat Material: PTFE, RPTFE,PPL;
Float Ball type;
Full port, 1/2"--4" (DN15~DN100);
Working Pressure: 1000WOG (PN63),150LB-600LB;
Working Temperature:-20℃ ~200℃ (-4℉~392℉);
Investment casting;
Blow-out proof stem;
Anti-static device (option);
Locking device;
Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226(BSP);
