Stainless Steel Screwed end Valves

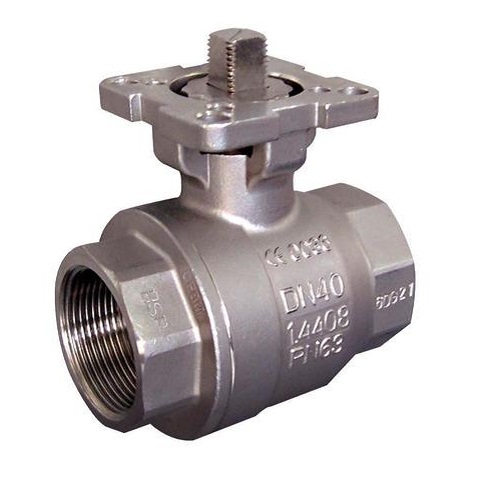

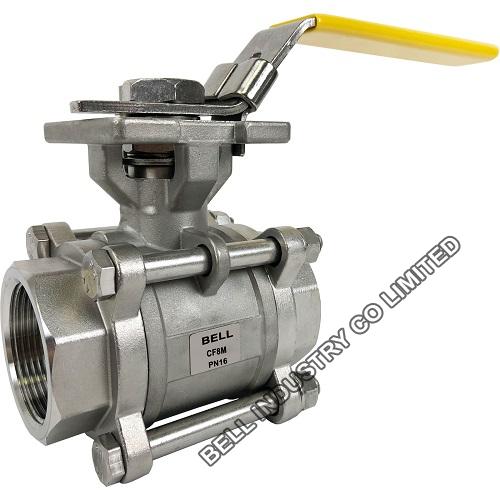

Stainless Steel Ball Valve with ISO Mounting pad

Full port, 1/2"-4"(DN15-DN100)
Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas,
Investment casting
Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226
Description: Stainless Steel Ball Valve with ISO Mounting pad, Full Port, Threaded Connection, PN16-PN64, 150LB-600LB. 3PC or 2PC Body Design.
INQUIRY EMAIL

Product Description

Mounting Pad: ISO 5211 direct mounting;

Material: CF8(304),CF8M(316),CF3(304L),CF3M(316L);
Seat Material:PTFE, RPTFE,PPL;

Float Ball type;
Full port, 1/8"--4" (DN6~DN100);
Working Pressure:1000WOG (PN63),150LB-600LB;
Working Temperature:-20℃ ~200℃ (-4℉~392℉);
Investment casting;
Blow-out proof stem;
Anti-static device (option);
Locking device;
Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226(BSP);
