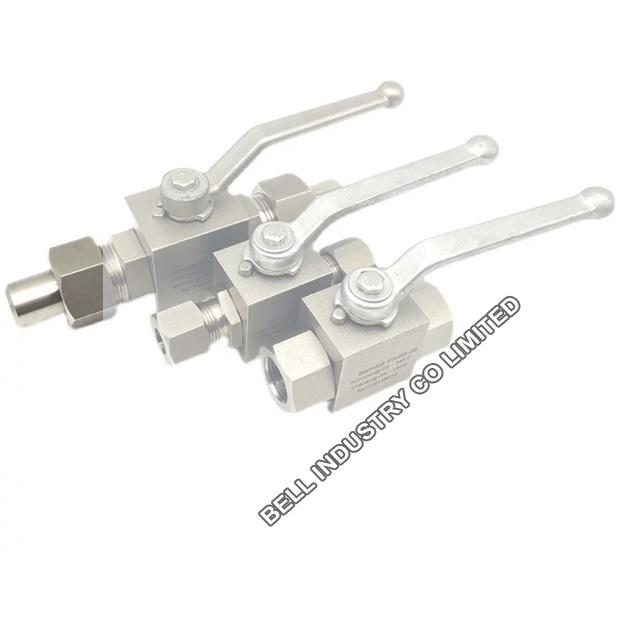

BKH 6000psi Stainless Steel Double Ferrule Ball Valve

Product Introduction

This industrial-grade BKH series high-pressure ball valve is precision-machined from premium SS316L square bar stock, delivering reliable on-off fluid control up to 6000 psi. Featuring a specialized double-ferrule tube fitting connection, it ensures a leak-tight, vibration-resistant joint. Equipped with a heavy-duty steel handle, this compact instrumentation valve is perfectly suited for demanding hydraulic systems, chemical processing, and high-pressure gas sampling lines.

Technical Specifications

• Valve Type: BKH Series High Pressure Ball Valve

• Body Design: Square block body / Forged bar stock

• Material Construction: ASTM A182 F316L Stainless Steel

• Connection Type: Double Ferrule Tube Fitting (Compression Ends)

• Connection Size: 10mm Tube OD (indicated by "10S"), available from 1/4" to 1" (6mm to 25mm)

• Max Working Pressure: 6000 psi (414 bar)

• Flow Pattern: 2-Way Straight-through (Inline)

• Bore Type: Full Bore / Reduced Bore options

• Seat Material: POM-MoS2 (standard for high pressure) / PEEK / PTFE

• O-Ring Seal Material: Viton (FKM) / NBR / Fluorocarbon

• Operation Method: Manual quarter-turn lever handle

• Handle Design: Zinc alloy or forged steel offset crank handle

• Operating Temperature: -22°F to 212°F (-30°C to 100°C) with POM seats

• Stem Design: Blowout-proof stem design for maximum safety

• Media Suitability: Hydraulic oil, water, aggressive chemicals, high-pressure gases

• Surface Treatment: Passivated clean stainless steel finish

• Testing Standard: 100% factory hydro-pneumatic tested (Shell and Seat) according to API 598

• Traceability: Heat code number and specifications permanently laser-etched on valve body

• Design Guidelines: Compliant with DIN ISO 228 / ASME B16.34 standards

• Mounting Feature: Base mounting holes available upon request for panel fixation
