150LB BSP Threaded Fittings

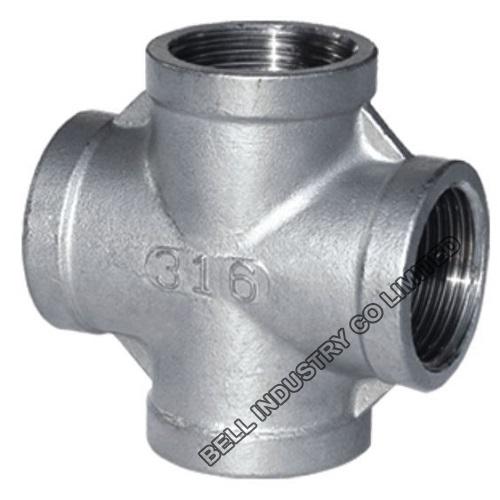

  • BSP NPT SCREWED EQUAL CROSS 150LB 316 STAINLESS STEEL
BSP NPT SCREWED EQUAL CROSS 150LB 316 STAINLESS STEEL

BSP NPT SCREWED EQUAL CROSS 150LB 316 STAINLESS STEEL

  • Size: 1/4"-4"
  • Pressure: 150LB
  • Dimension: ANSI B16.3 or DIN 2982
  • Material: SS201, SS304/CF8, SS316/CF8M, DIN 1.4408, DIN 1.4401
  • Description: BSP NPT SCREWED EQUAL CROSS 150LB 316 STAINLESS STEEL, Stainless steel is to BS 316 S11 (EN 1088-3 1-440). Screwed Stainless Steel Equal Cross - 1" -4" BSP. 316 stainless steel fittings manufactured t
  • INQUIRY   EMAIL
BSP NPT SCREWED EQUAL CROSS 150LB 316 STAINLESS STEEL

-Size: 1/4"-4"
-Pressure: 150LB
-Dimension: ANSI B16.3 or DIN 2982
-Material: SS201, SS304/CF8, SS316/CF8M, DIN 1.4408, DIN 1.4401
-Casting Process : Investment Casting
-Manufactured to ISO 4144.
-Maximum working pressure 150LBS-300psi (20 bar).
-Thread Ending: NPT, DIN, BSP, BSPP, BSPT,  ISO7-1, ISO228-1 etc.
