150LB BSP Threaded Fittings

  • BSP NPT SCREWED STREET ELBOW 90°M/F
BSP NPT SCREWED STREET ELBOW 90°M/F

BSP NPT SCREWED STREET ELBOW 90°M/F

  • Size: 1/4"-4"
  • Pressure: 150LB
  • Casting Process : Investment Casting
  • Thread Ending: NPT, DIN, BSP, BSPP, BSPT, ISO7-1, ISO228-1 etc.
  • Description: BSP NPT SCREWED STREET ELBOW 90°M/F, Thread Ending: NPT, DIN, BSP, BSPP, BSPT, ISO7-1, ISO228-1 etc. Size: 1/4"-4"
  • INQUIRY   EMAIL

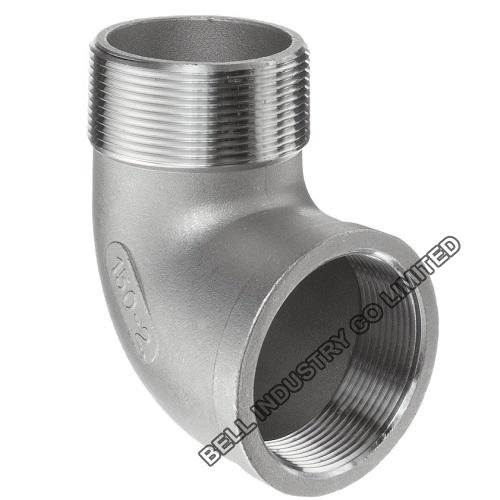

BSP NPT SCREWED STREET ELBOW 90°M/F


-Size: 1/4"-4"
-Pressure: 150LB
-Dimension: ANSI B16.3 or DIN 2982
-Material: SS201, SS304/CF8, SS316/CF8M, DIN 1.4408, DIN 1.4401
-Casting Process : Investment Casting
-Manufactured to ISO 4144.
-Maximum working pressure 150LBS-300psi (20 bar).
-Thread Ending: NPT, DIN, BSP, BSPP, BSPT,  ISO7-1, ISO228-1 etc.
