Cast Iron Valves

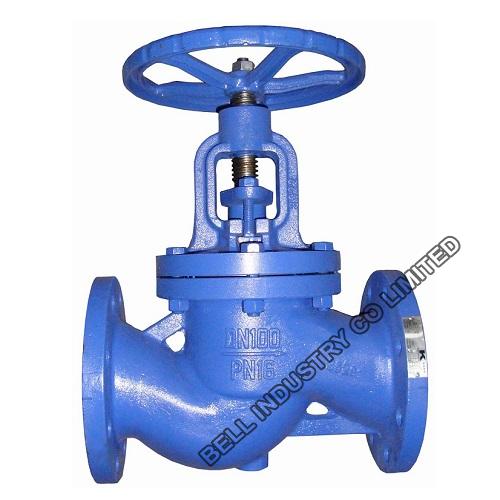

Cast-Iron-Globe-Valve-DIN 3201 F1-PN10-PN16-GG25

Design Std: EN 13789,DIN 3356
Size:DN15--DN300
Body, bonnet: Cast Iron (GG25)
COATING:EPOXY ELECTRO STATIC POWDER
Description: Cast-Iron-Globe-Valve-DIN 3201 F1-PN10-PN16-GG25, Globe Valves in Straight-Through Type. Bonnet, outside stem, and rising handwheel, with flanged connection acc. to DIN; Face-to-face dimension to DIN
INQUIRY EMAIL

Cast-Iron-Globe-Valve-DIN 3201 F1-PN10-PN16-GG25

DIN Cast Iron Globe Valve, maintains %100 tight sealing through the graphite gasket on the stainless steel disc moving perpendicular to the flow axis and seating on the machined metal seat inside the body. Its is used for steam, Superheated Water, Hot Water, Cold Water, Fluids without acidity or alkalinity properties

-Design Std: EN 13789,DIN 3356
-Size:DN15--DN300
-Body, bonnet: Cast Iron (GG25)
-COATING:EPOXY ELECTRO STATIC POWDER
-Pressure Rating: PN16,PN10
-FLANGED: 1092-2 / ISO 7005-2, DIN2532/2533
-Face to Face: EN 558 Seri 1 / DIN 3202 F1
-Pressure Testing: EN 12266-1
-Working temperature: Max. +320°C
