Cast Iron Valves

  • Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25
  • Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25
Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25

Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25

  • Design Standard: BS5150/BS5163/DIN3352/JIS B2043
  • Size:DN40--DN300
  • Body Cast Iron EN-JL1040,GG25
  • Face to Face Dimension: BS5163/DIN3302 F4/JIS B2002
  • Description: Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25, Nominal Diameter: DN50-DN1800, Nominal Pressure: 10Bar/16Bar
  • INQUIRY   EMAIL

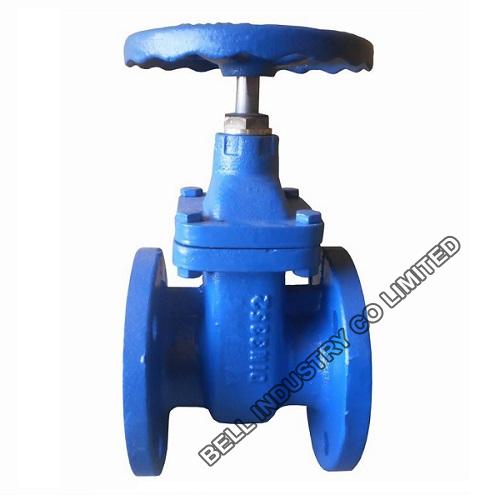

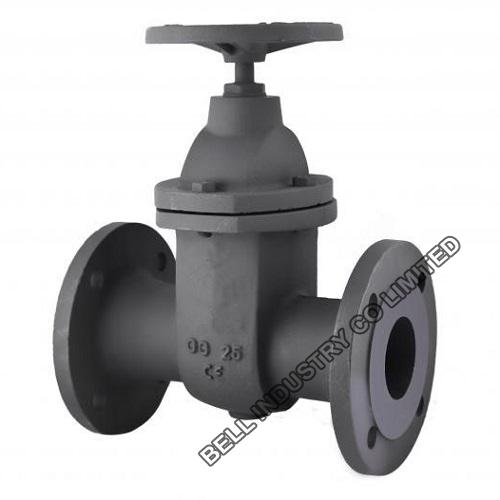

Cast Iron Metal seat Gate Valve-DIN 3202 F4 F5-GG25

Metal Seated Gate Valves are manufactured to DIN3202 F4 & coated with a tough thermally bonded acrylic coating certified to PED97/23/EC for used for pipeline isolation, suitable for potable water, wastewater and sewage duties and buried service.


-Design Standard: BS5150/BS5163/DIN3352/JIS B2043
-Size:DN40--DN300
-Body Cast Iron EN-JL1040,GG25
-Wedge Cast Iron EN-JL1040
-Nominal Pressure: 10Bar/16Bar
-Face to Face Dimension: BS5163/DIN3302 F4/JIS B2002
-Flange Connection: ASME B16.1 CL125/ASME B16.5 CL150/,  DIN 2501 PN10-16/EN1092 PN10-16 /JIS B2212 10K
-Inspection and Test: ISO 5208/EN 12266-1/ API598
-Temperature range: -10°C/+120°C
