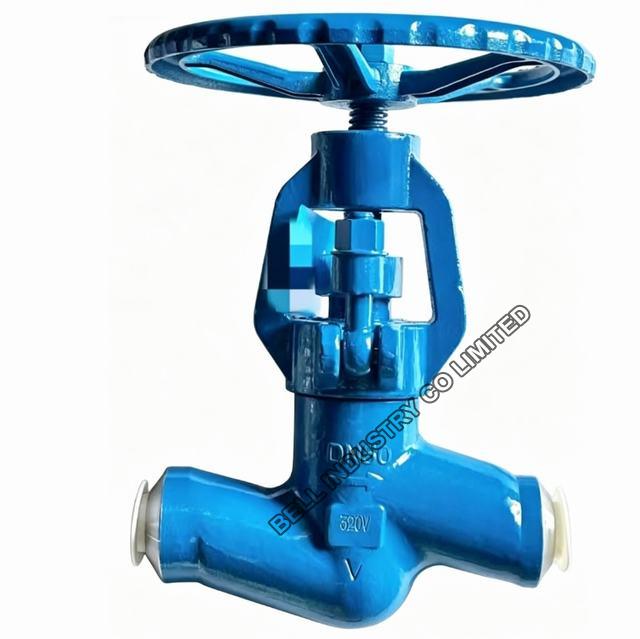

Power Plant High Temperature Globe Valve

This high-temperature, high-pressure forged steel globe valve is specifically engineered for critical steam and water isolation in power generation and petrochemical industries. Featuring a robust welded connection and an outside screw and yoke (OS&Y) design, it provides exceptional sealing performance and long-term reliability under severe thermal cycling conditions.

Technical Specifications

• Valve Type: Globe Valve / Stop Valve

• Body Material: Forged Carbon Steel / Alloy Steel (16Mo3, 12Cr1MoV)

• Nominal Diameter: DN50

• Connection Type: Butt Welded (BW) / Socket Welded (SW)

• Design Standard: ASME B16.34 / BS 1873 / DIN

• Structure Type: Outside Screw and Yoke (OS&Y)

• Stem Type: Rising Stem

• Operation: Manual Handwheel

• Flow Direction: Unidirectional (As marked by arrow on body)

• Sealing Material: Stellite Hard Alloy Faced

• Bonnet Type: Bolted Bonnet or Pressure Seal Bonnet

• Medium: Superheated Steam, High-Temperature Water, Non-corrosive Fluids

• Application Environment: Thermal Power Plants, Industrial Boiler Systems

• Pressure Rating: PN100, PN160, PN320, Class 1500, Class 2500

• Temperature Range: High Temperature Resistance

• Inspection & Test: API 598 / EN 12266-1

• Face to Face Dimension: Standard Factory Dimensions

• Paint/Coating: Heat-Resistant Protective Blue Finish

• End Protection: Plastic Caps Installed for Shipping Protection

• Marking: Cast/Forged with Size, Flow Arrow, and Material Grade Code
