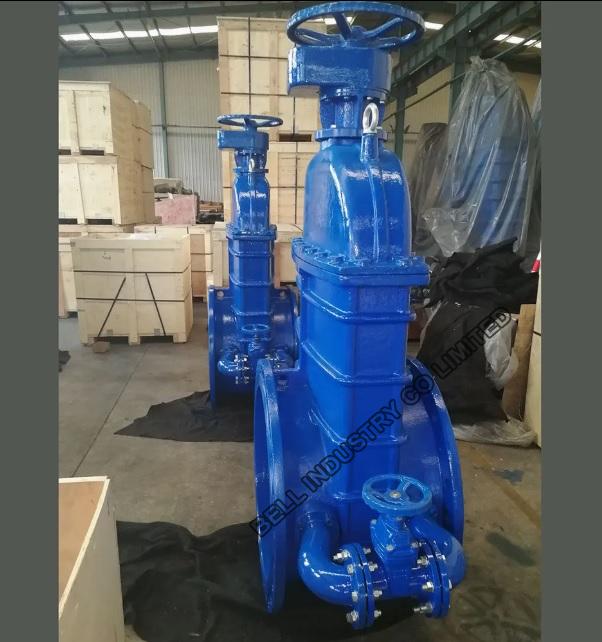

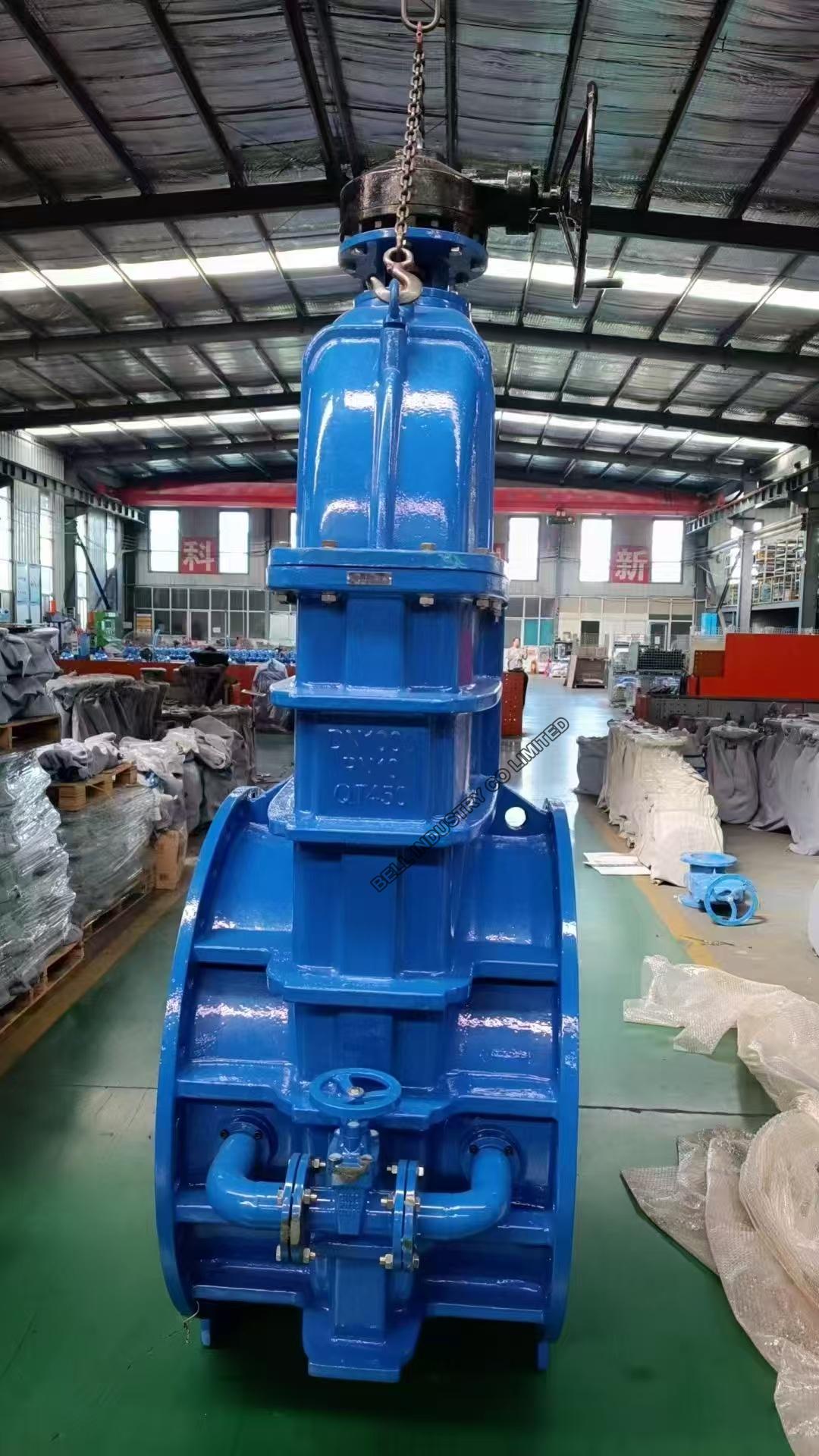

Ductile iron double block and bleed gate valve

Ductile Iron Double Block and Bleed Gate Valve

1. Overview
A ductile iron double block and bleed (DBB) gate valve is a specialized valve designed for critical isolation applications in pipelines. It combines the robustness of ductile iron construction with a dual-sealing mechanism and a bleed port, ensuring enhanced safety and reliability in high-pressure or hazardous environments.

2. Material: Ductile Iron GGG50,GGG40
Properties: Ductile iron, a form of cast iron with added magnesium, offers superior strength, ductility, and impact resistance compared to traditional cast iron. It withstands high pressures and temperatures while providing excellent corrosion resistance, especially when coated with epoxy or other protective linings.

Advantages: Ideal for demanding applications due to its durability, cost-effectiveness, and adaptability to various environments.

3. Valve Type: Gate Valve
Design: Utilizes a wedge-shaped gate that moves perpendicular to the flow path. When open, the gate retracts fully into the bonnet, minimizing pressure drop. When closed, the gate seals against two seats to block flow.

Operation: Typically operated manually (handwheel, lever) or via actuators (electric, pneumatic). Stem types include rising (visual position indication) or non-rising (compact design).

4. Double Block and Bleed (DBB) Mechanism
Dual Seals: Features two independent sealing surfaces (primary and secondary). When closed, both seals isolate the medium, providing redundancy.

Bleed Port: A small valve located between the seals allows venting or draining the cavity between the gates. This enables:

Leak testing of the primary seal.
Pressure relief to prevent cavity over-pressurization.
Safe maintenance by verifying seal integrity.

5. Key Components
Body & Bonnet: Ductile iron construction; bolted bonnet for easy maintenance.
Gate: Wedge-shaped, often clad with stainless steel or elastomeric materials for sealing.
Seats: Replaceable rings (elastomeric for tight sealing, metal for high-temperature applications).
Stem: Stainless steel with anti-blowout design; sealed via packing or O-rings.
Bleed Assembly: Typically a needle or ball valve for precise control.

6. Operational Workflow
Closing: The gate is lowered, compressing against both seats to block flow.
Bleeding: The port between the seals is opened to vent trapped fluid/pressure.
Verification: Monitoring the bleed port confirms seal integrity (e.g., no leakage past the primary seal).

7. Applications
Industries: Oil and gas, chemical processing, water treatment, power generation.
Use Cases: Pipeline isolation, maintenance safety, preventing cross-contamination, hazardous fluid handling.

8. Standards & Certifications
API 6D: Specifies design and testing for pipeline valves.
ISO 5208: Leakage testing standards.

Fire-Safe Design: Complies with API 607/6FA for fire resistance.

9. Advantages
Safety: Dual seals and pressure relief reduce risk of accidental release.
Efficiency: Eliminates need for system depressurization during maintenance.
Versatility: Suitable for diverse media (liquids, gases) and temperatures.
Compliance: Meets stringent industry regulations for isolation.
