Forged steel Socked-Threaded Fittings

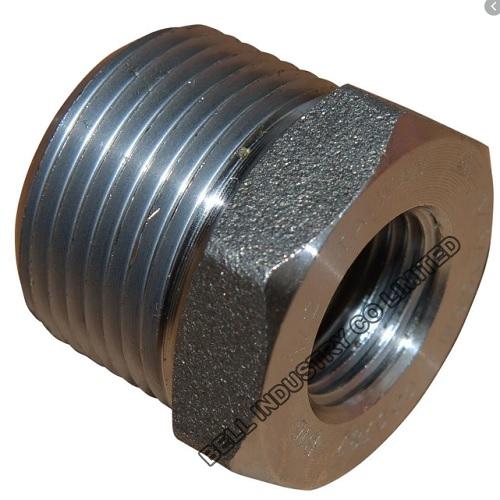

Forged Steel Bushing-Black steel A105-F316-1500LB-3000LB

Standard: ASME B16.11 Mss Sp 79/83/95/97, En10241
Pressure: 2000/3000/6000/ Lbs
Size: 1/4
Description: Forged Steel Bushing-Black steel A105-F316-1500LB-3000LB, Manufactured, tested and certifed in accordance wtih ASME 3A-105N & ASTM A105N Normalized
INQUIRY EMAIL

Forged Steel Bushing-Black steel A105-F316-1500LB-3000LB

-Type:Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Plug, Bushing, Union, HEX. Nipple, Swage nipple, Bull Plug, Street Elbow, Boss, Reducer Insert and Out-let…etc
-Connection: NPT or BSP Screwed, Socket-Weld, Butt-welding
-Size: NPS 1/8"--4" (DN 6-100)
-Rating Pressure
--Threaded End – 2000 / 3000 / 6000 LBS.
--Socket-weld End – 3000 / 6000 / 9000 LBS.
--Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.

-Specifications
--Dim. Spec. :
ASME B16.11-2009 (Revision of ASME B16.11-2005) MSS – SP – 79, 83, 95, 97 and BS3799.
ANSI / ASME B1.20.1-1983 NPT
--Material Spec. :
ASTM A105, A350 LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
--Size of Raw Material: DIA. 19~85mm Round Bar.
