Forged Steel Valves

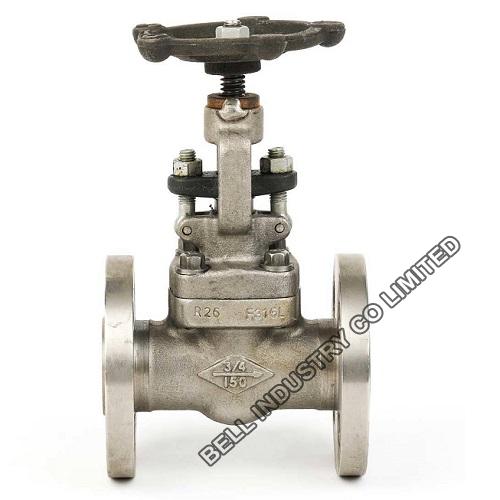

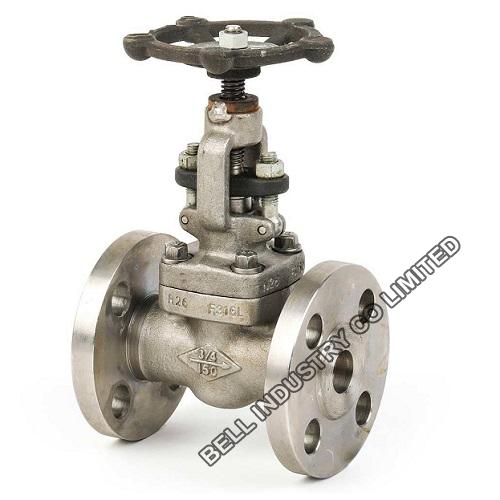

Forged Steel Flange Globe Valve
- Bolted bonnet, outside screw and yoke Welded bonnet, outside screw and yoke
- Body Material: A105 LF2 F5 F11 F22 304(L) 316(L), F347 F321 F51 Monel 20 Alloy.
- Design and manufacrture: API602, BS5352, ASME B16.34, MSS-SP-117
- Description: Forged Steel Flange Globe Valve, Bolted bonnet, outside screw and yoke Welded bonnet, outside screw and yoke , Body Material: A105 LF2 F5 F11 F22 304(L) 316(L), F347 F321 F51 Monel 20 Alloy.
-
Forged Steel Flange Globe Valve
-Bolted bonnet, outside screw and yoke Welded bonnet, outside screw and yoke
-Body Material: A105 LF2 F5 F11 F22 304(L) 316(L), F347 F321 F51 Monel 20 Alloy.
-Bellow materials 304 321 316 Inconel 625Hastelloy C 276 Monel.
-Design and manufacrture: API602, BS5352, ASME B16.34, MSS-SP-117
-End connections:
-Socket-weld: ANSI B16.11
-Screwed (threaded): ANSI B1.20.1
-Butt-welding: ANSI B16.25
-Flange ends: ANSI B16.5
-Inspection and test: API 598
-Structure feather: Bolted bonnet (B.B) and Outside screw and yoke (OS&Y) Welded bonnet (W.B) and Outside screw and yoke (OS&Y)
-Materials according to ANSI, ASTM
FORGED STEEL GLOBE VALVE MATERIAL LIST:
