Forged steel Socked-Threaded Fittings

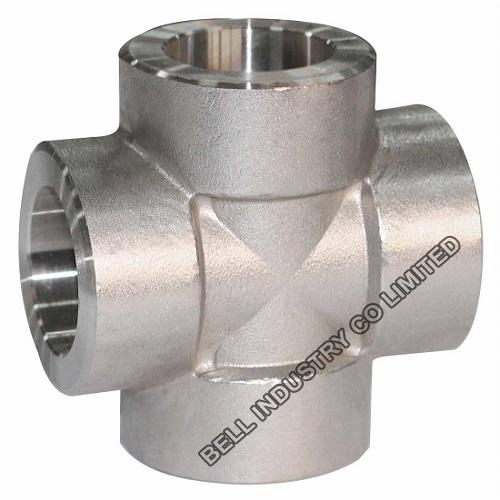

Forged steel socket weld Cross -3000LB-1500LB

Standards: ANSI B16.11,BS3799,JIS B2316,MSS SP-83,MSS SP-79,MSS SP-95,MSS SP-97
Materials: Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2 Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/ 317L/ F321/ F310/ 347/ 904
Pressure Rating: 3000LBS,6000LBS,9000LBS
Description: Forged steel socket weld Cross -3000LB-1500LB, Sizes: 1/8'' - 6'' (DN6 - DN150)
INQUIRY EMAIL

Forged steel socket weld Cross -3000LB-1500LB

-Type:Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Plug, Bushing, Union, HEX. Nipple, Swage nipple, Bull Plug, Street Elbow, Boss, Reducer Insert and Out-let…etc
-Connection: NPT or BSP Screwed, Socket-Weld, Butt-welding
-Size: NPS 1/8"--4" (DN 6-100)
-Rating Pressure
--Threaded End – 2000 / 3000 / 6000 LBS.
--Socket-weld End – 3000 / 6000 / 9000 LBS.
--Butt-weld End – SCH40 / SCH80 / SCH160 / XXS.

-Specifications
--Dim. Spec. :
ASME B16.11-2009 (Revision of ASME B16.11-2005) MSS – SP – 79, 83, 95, 97 and BS3799.
ANSI / ASME B1.20.1-1983 NPT
--Material Spec. :
ASTM A105, A350 LF2, A106, A312, A234, A403
ASTM A182 (F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91)
--Size of Raw Material: DIA. 19~85mm Round Bar.

-Marking
--Carbon and Alloy Steel: Marked by stamping.
--Stainless Steel: Marked by electro-etched, jet printed or stamping.
--3/8” under: Brand only.
--1/2” to 4”: Marked with brand, material, heat code, B16 (For ASME B16.11 product), pressure and size.

-Finishing: Carbon steel: Galvanized or black. Stainless steel: Pickled.
