Hygienic Pipe Fittings
Hygienic Tri-Clamp union-Stainless steel 316L
- Size:from 1/2″ OD – 10″ OD
- Ferrules in 21.5mm & 28mm length.
- Ferrules manufactured to BS4825 PT3
- Internal finish 0.8Ra – 1.6Ra
- Description: Hygienic Tri-Clamp union-Stainless steel 316L,
-

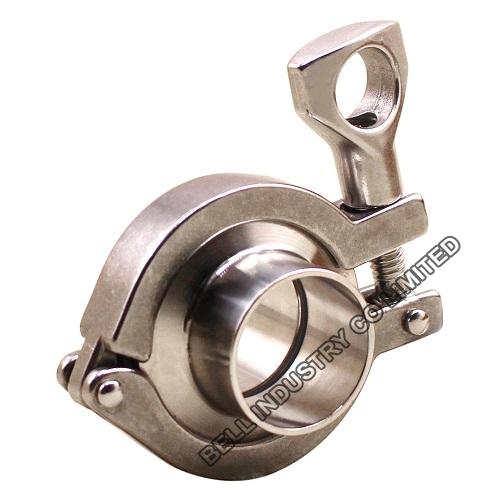

Hygienic Tri-Clamp union-Stainless steel 316L

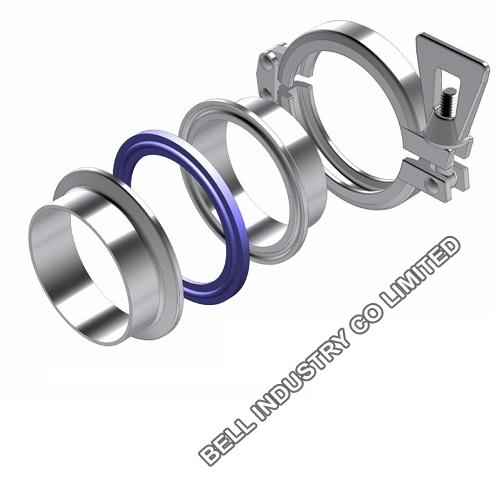

Clamp Union (Also known as Tri-Clamp) – Uses two ferrules clamped together with a joint ring to form a superior hygienic union. The two ferrules have a tapered flange which when compressed by the clamp, it forms a tight hygienic seal.
-Size:from 1/2″ OD – 10″ OD
-Ferrules in 21.5mm & 28mm length.
-Ferrules manufactured to BS4825 PT3
-Internal finish 0.8Ra – 1.6Ra
-Schedule & Pharmaceutical standard can be supplied.
-Single & Double hinged clamps available.
-“BSF” Type clamp as standard with union – which is single hinged.
-Standard joint rings is blue EPDM, Other materials available including PTFE solid, PTFE envelope, Viton and Silicone.
-Blanking caps in 316
