Hygienic Pipe Fittings

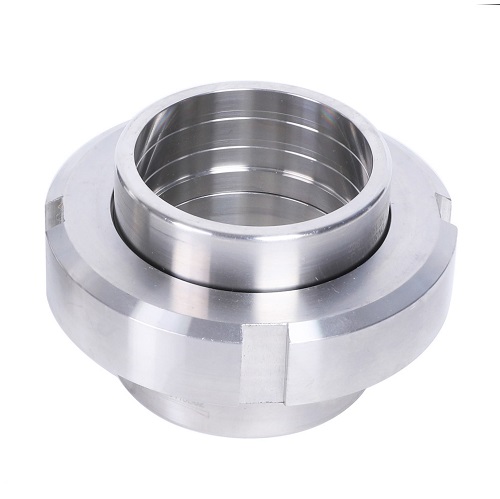

Hygienic SMS union-Stainless steel 316L
- Size Range: 1″ OD – 4″
- MATERIAL: T304, T316L, 1.4301, 1.4404
- SEALING GASKET:Silicone, EPDM, PTFE, Buna-N etc.
- TEMPERATURE: -30°C / -22°F up to +120°C/ +248°F
- Description: Hygienic SMS union-Stainless steel 316L,It also consists of a round slotted nut in 304 stainless, Weld liner and weld male in 316
-
Hygienic SMS union-Stainless steel 316L
-Size Range: 1″ OD – 4″
-MATERIAL: T304, T316L, 1.4301, 1.4404
-SEALING GASKET:Silicone, EPDM, PTFE, Buna-N etc.
-TEMPERATURE: -30°C / -22°F up to +120°C/ +248°F
-Heavy duty blank liners in 316/304.
SMS unions (Swedish Manufacturing Standard - SMS 1145) are a hygienic fitting that features a captive seal design to provide a smooth, crevice-free internal bore. They consist of a round slotted nut, weld liner and weld male with an L style seal available in a range of material types.

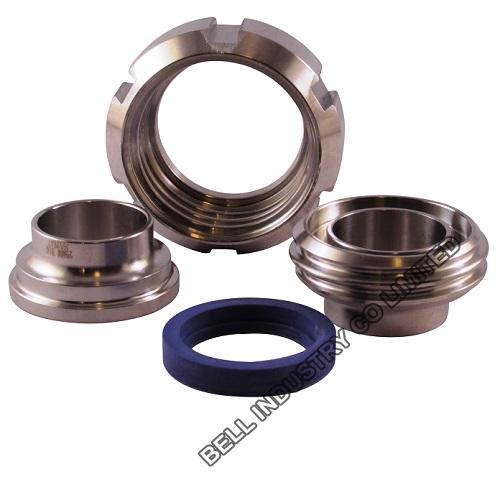

SMS union consist of:
-Stainless Steel SMS Slotted Nut to SMS1145,Grade 304
-Stainless Steel SMS Weld Male to SMS1145,Grade 316
-Stainless Steel SMS Weld Liner,to SMS1145,Grade 316
-L-Type SMS Joint Ring
-Stainless Steel SMS Blank Liner,to SMS1145,Grade 316
-Stainless Steel Adjustable SMS Spanners
