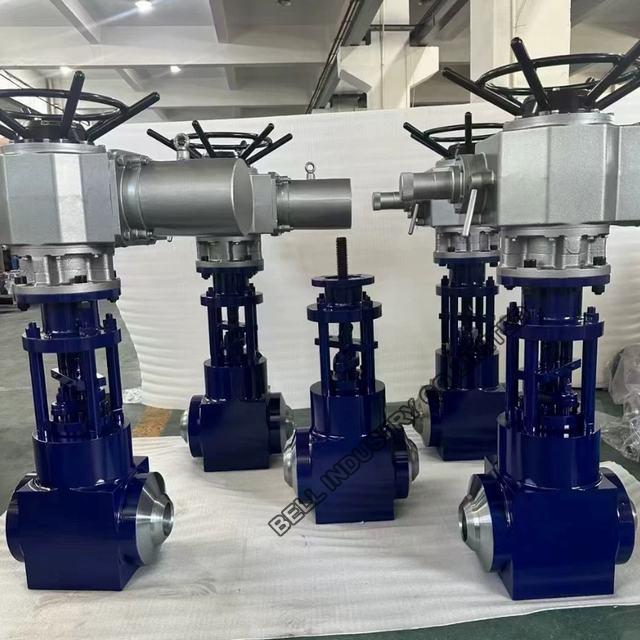

J961Y Electric Motorized Pressure Seal Globe Valve High Pressure

The J961Y series motorized globe valve is a premium flow isolation solution designed for automated control in high-temperature and high-pressure steam lines of power generation facilities. Equipped with a high-performance electric actuator, it allows for seamless remote operations and system integration. The advanced pressure seal design utilizes line pressure to optimize sealing efficiency, while the durable butt-welded ends guarantee structural integrity under extreme working conditions.

Technical Specifications

• Model Designation: J961Y Series

• Actuation Type: Electric Motorized / Multi-turn Actuator

• Valve Category: High Pressure Actuated Station Globe Valve

• Body Type: Straight-Through Pattern

• Bonnet Configuration: Pressure Seal Bonnet Design

• Body Materials: Carbon Steel / High-Temperature Alloy Steel

• End Connection: Butt Welded Ends (BW)

• Design & Manufacture Standard: JB/T 3595 / ASME B16.34

• Sealing Material: Stellite Hard Alloy Overlay

• Flow Orientation: Unidirectional Flow (Indicated by directional arrow)

• Stem Configuration: Rising Stem (OS&Y Design)

• Actuator Override: Manual Handwheel Included for Emergency Operation

• Application Medium: High-Pressure Superheated Steam, Subcritical Boiler Water

• Primary Industry: Thermal Power Stations, Industrial Automation Systems

• Pressure Rating Group: High Pressure Class

• Temperature Resistance: Engineered for Thermal Cycles

• Testing & Verification: Hydrostatic and Shell Leak Standard Tested

• Seat Structure: Integral Hard-Faced Seat Ring

• Yoke Design: Rigid Open Yoke for Actuator Mounting

• Outer Coating: Heat-Resistant Protective Industrial Finish

• Shipping Security: End Faces Machined and Fitted with Protective Covers
