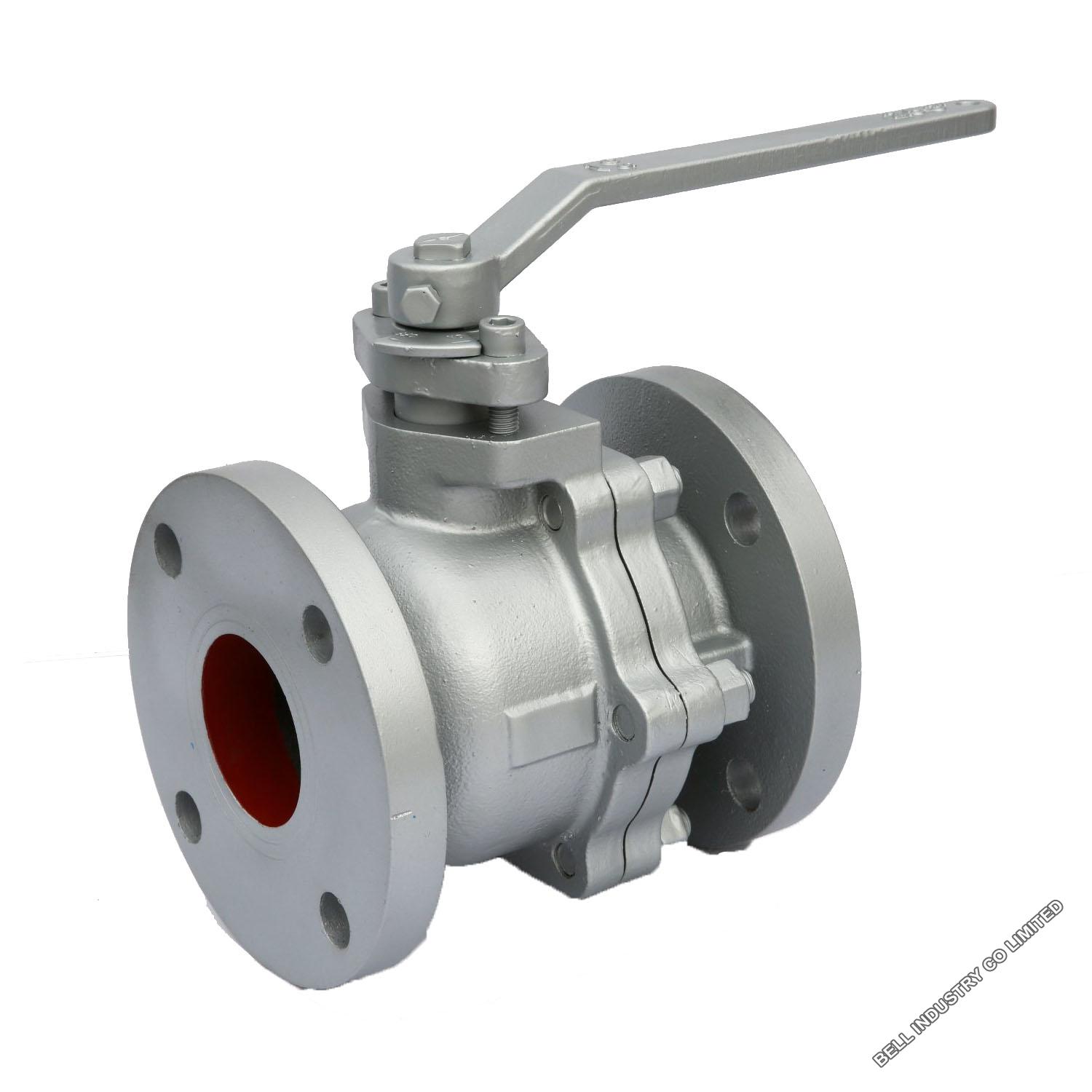

JIS 10K Cast Iron Ball Valves-GGG40-GG25
- Size: 10k DN40-200
- Material: body:cast iron,HT200/FC200
- Flange standard:JIS B 2239
- Paiting:RAL5002BLUE
- Description: JIS 10K Cast Iron Ball Valves-GGG40-GG25, Specification. Applicable Fluld, Water. Working Pressure, Less than 10kgf/㎠(Max.1.0MPa).
-
JIS 10K Cast Iron Ball Valves
Material
-Body: Grey Iron
-Ball: Stalnless steel
-Stem: Stalnless steel 304,2CR13,
-Gland: PTFE
Specification
-Size: 10k DN40-200
-Material: body:cast iron,HT200/FC200
-Seal test:0.6 MPa,air
-Flange standard:JIS B 2239
-Paiting:RAL5002BLUE
-Working Pressure Less than 10kgf/㎠(Max.1.0MPa)
-Applicable Temperature: Less than 80'c
-Connection Method: 10K FF Flange
-Hydraulic Test Body: 20kgf/㎠(2.0MPa)
-Seat 16kgf/㎠(1.6MPa)
