PRODUCT

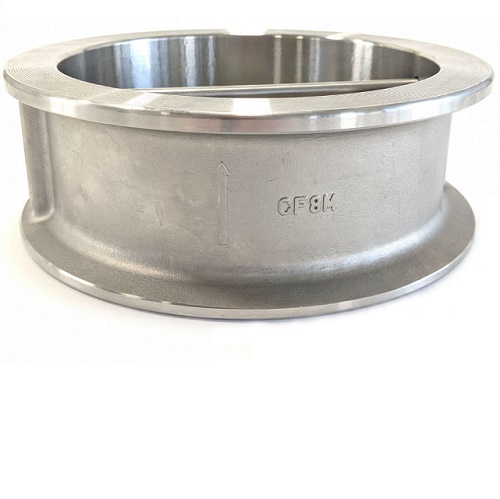

CHECK VALVE WAFER PN16 RF- DIN 3202-K3
- DIN 3202 K3 CHECK VALVE
- DIN 3202 Dual Plate Wafer Check Valve
- Working pressure: PN10, PN16.
- Description: CHECK VALVE WAFER PN16 RF- DIN 3202-K3 , Face to Face length :DIN 3202, part 3, series K3, DIN PN10/PN16 Wafer connection.
-
CHECK VALVE WAFER PN16 RF- DIN 3202-K3 Description:
-Material:Material: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hastaloy, 1.4401, 1.4408,1.4403
-Applicable temperature: from -40 to +230 degrees Celsius.
-Working pressure: PN10, PN16.
-Size Range: from 2 to 40 inches diameter (DN25 to DN1000).
-Face to face according to DIN 3202-K3, GB 12221-16,
-Flange drilling according to ANSI 125/150, DIN 2501 PN10/PN16, AS 2129 Table E, JIS 10K.
