Hygienic Valves

  • 3-way hygienic Ball Valves
  • 3-way hygienic Ball Valves
  • 3-way hygienic Ball Valves
3-way hygienic Ball Valves3-way hygienic Ball Valves3-way hygienic Ball Valves

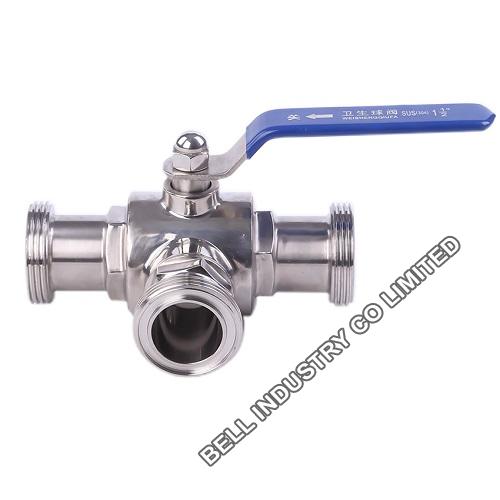

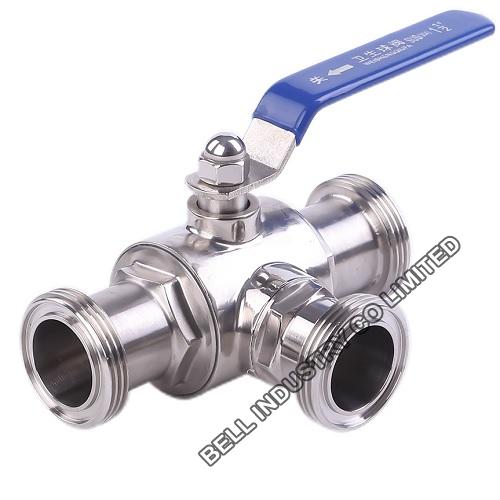

3-way hygienic Ball Valves

  • Silicone Free
  • Sanitary clamp end connections
  • Full port bore

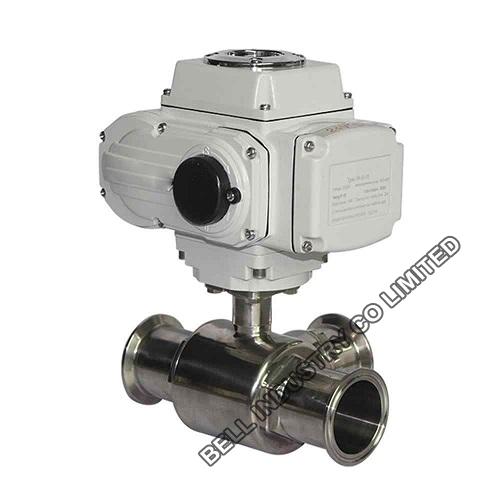

  • Electric or pneumatic actuators available
  • Description: Manufacturer of 3-way hygienic Ball Valves, Stainless steel 304 or 316L material,
  • INQUIRY   EMAIL
3-way hygienic Ball Valves description:

-Silicone Free
-Seats with cavity fillers to avoid media entrapment
-Full port bore
-ISO 5211 direct mount actuator mounting pad
-Blow-out proof stem
-Solenoid valves and limit switches available
-Minimal pressure drop
-Temperature Range:-4 to 392°F
-Maximum Pressure:1000 WOG
-High pressure applied
-Self-cleaning,Completely disassemble
-forging body or casting body can be provided
-100% leaking tested
-Live-loaded stem seal
-Straight-through design
-Ball can be solid or hollow
-Reinforced PTFE seats

-Size:1/2"-12"   DN15-DN300
-Body, Ball, & Stem Grade: AISI304 and AISI316L
-FDA approved gaskets PTFE gasket
-Standard: 3A, SMS, DIN , etc
-Connections: butt welded;Tri clamp end; male threaded; female threaded; flange end;union connection;
-Inner surface finish is Ra0.6 to meet the requirement of food industries
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
-Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
