Hygienic Valves

  • Aseptic diaphragm valve stainless steel 316
  • Aseptic diaphragm valve stainless steel 316
  • Aseptic diaphragm valve stainless steel 316
Aseptic diaphragm valve stainless steel 316Aseptic diaphragm valve stainless steel 316Aseptic diaphragm valve stainless steel 316

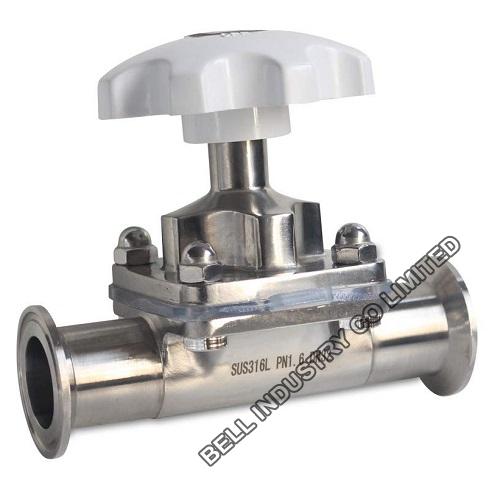

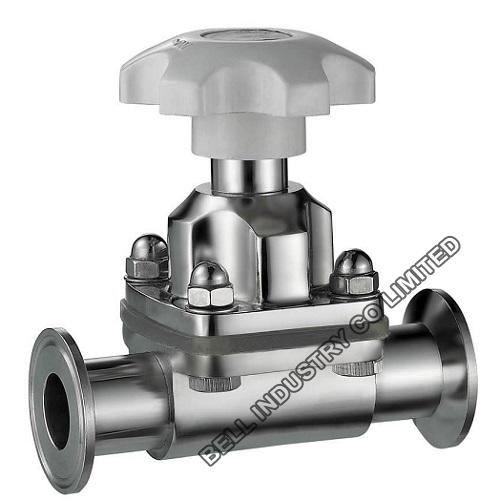

Aseptic diaphragm valve stainless steel 316

  • All forged 2-way valves have integral tri-clamp or weld end connections – no welding required during manufacture
  • Compact valve: Tri-clamp, extended tube end, standard; optional connections including hose barb upon request
  • Standard: Forged EN 10272:2000 Gr 1.4435 316L
  • Surface Standard: ASEM BPE SF1, 20 Ra µin (0,5 Ra µm) and ASME BPE SF5, 20 Ra uin (0,5 um) electropoish
  • Description: Manufacturer of Aseptic diaphragm valve stainless steel 316 stainless steel 316, Hygienic Grade 1.4435 / 316L material, manually or pneumatically operated.
  • INQUIRY   EMAIL
Aseptic diaphragm valve stainless steel 316 stainless steel 316 description:


-Availably  size:1"-3",DN25-DN80
-Availably structure:Straight, tee, U-type, tank bottom
-Body Material: 1.4301 (304) / 1.4307 (304L) / 1.4404 (316L)
-Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate
-Integrated membrane
-Max. Pressure: 10bar
-Max. Temperature: -10  ~ +120 degree
-Inside surface finish: Ra0.4
-Standard: DIN, SMS
-Connection: welded, clamped, flanged,

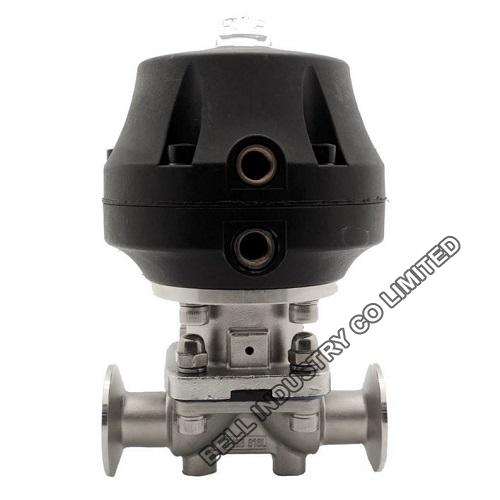

-Operation: Manual, pneumatic

The diaphragm valve is widely used for pharmaceutical industries. This valve is widely used for controlling flow rate.
