Hygienic Valves

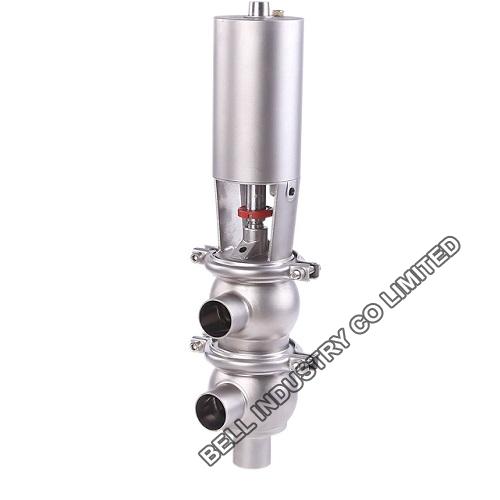

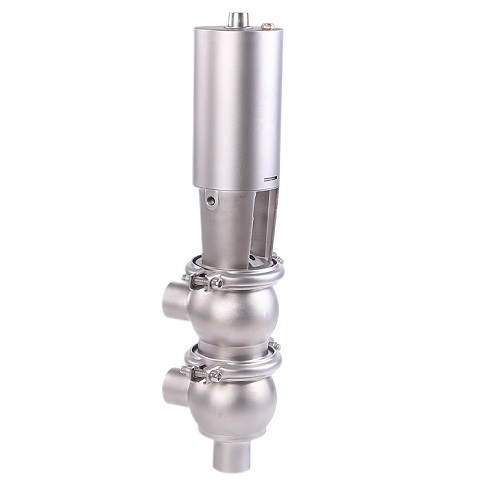

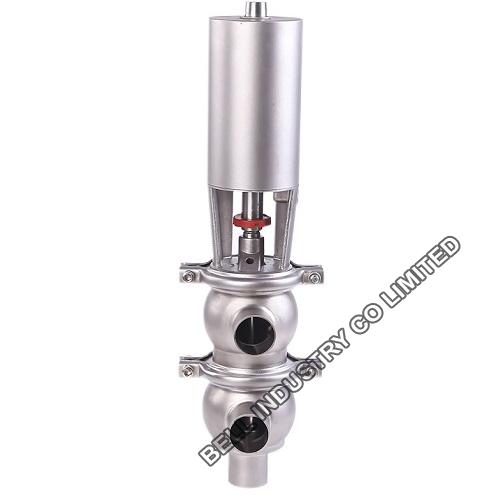

Sanitary Aseptic Divert Seat Valves-Shut-Off-Single seat Valves
- Nominal pressure valve:10 bar
- Aseptic Divert Seat Valve for Biopharmaceutical
- Gasket:FPM(viton) in compliance with FDA 177.2600
- Connection:DIN,SMS, RJT, IDF
- Description: Manufacturer of Sanitary Aseptic Divert Seat Valves-Shut-Off-Single seat Valves,
-
Sanitary Aseptic Divert Seat Valves-Shut-Off-Single seat Valves description:
-Size :DN25-DN100/1"-4"
-Gasket (standard) EPDM according to FDA 177.2600
-Gasket (option) FPM(viton) in compliance with FDA 177.2600
-Internal surface finish Ra<0.8μm
-External surface finish Sandblast or mirror polish
-Size available DN25-DN100/1"-4"
-Working temperature: -10ºC to 120ºC (EPDM)
-Max working pressure:10 bar, 145 PSI
-Compressed air pressure:5-7 bar
-Air connection:G 1/8" (BSP)
-Connection:DIN,SMS, RJT, IDF
-Applications:Biopharmaceutical
Actuator:
The standard version of the pneumatic actuator is designed as spring-closing / air-opening (NC). Other available options are: air-closing / spring-opening (NO) and manual drive with crank handle (H).
