Stainless Steel Flanged Valves

  • JIS 10K Stainless steel gate valve

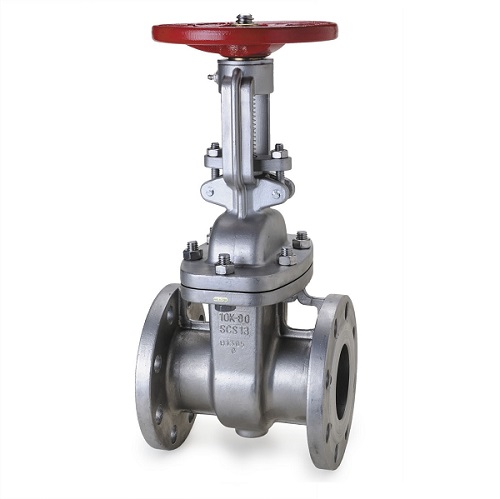

JIS 10K Stainless steel gate valve

JIS 10K Stainless steel gate valve

  • Pressure and flange drilling: JIS 10K
  • Design and Manufacture Standard: ASME B16.10/API 600/API 602/F7364
  • Working Pressure: 10kg/cm²
  • Applicable Medium: General oil, Gas & Water applications
  • Description: Manufacturer of JIS 10K Stainless steel gate valve, Rising Stem, Bolted Bonnet Type, Material: SUS316L, SUS304L, SUS316;
  • INQUIRY   EMAIL
JIS 10K Stainless steel gate valve description:

-Size: 1/2"-6"
-Design and Manufacture Standard: ASME B16.10/API 600/API 602/F7364
-Connection: JIS10K Flange End Connection
-Flexible wedge
-Working Pressure: 10kg/cm²
-Valve design according to API 603
-Shell Well Thickness According to ANSI B16.34
-Seat face stellited, ground and lapped to a mirror finish
Specifications:
-Face to Face According to JIS B2002(1987)
-Flanged Dimension According to JIS B2010(1996)
-Pressure testing according to API598
-Temperature Range: SS316: -29°C to 425°C

For General Chemical and Industrial application
2" and larger integral Stellited seat face available for longer service life (option)
