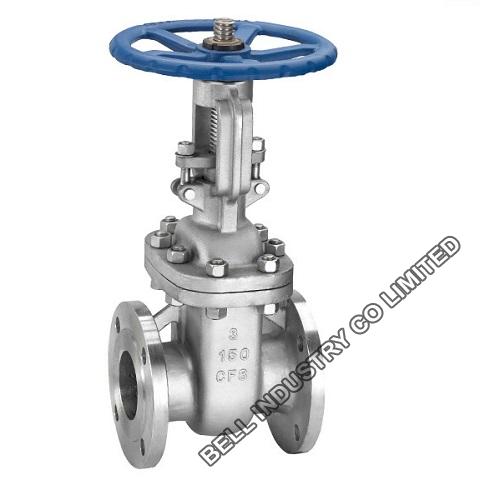

150LB Flanged Stainless Steel Gate Valve description:
-Design Std: API 600, API 6D
-Size:DN15--DN600
-Body: Cast Steel WCB, GS-C25, Stainless Steel A351-CF8, CF8M, CF3, CF3M
-Wedge: Stainless steel 304,316
-Pressure Rating: 150LB,300LB,600LB, 900LB,1500LB
-Seat: Stainless Steel - AISI 420, 304,316
-Bolted Bonnet; Outside Screw & Yoke
-Face to Face:ASME / ANSI B16.10
-Flanges drilled: ASME / ANSI B16.5, ASME / ANSI B 16.25
-Pressure & temperature: ASME / ANSI B16.34
-Test: API 598
