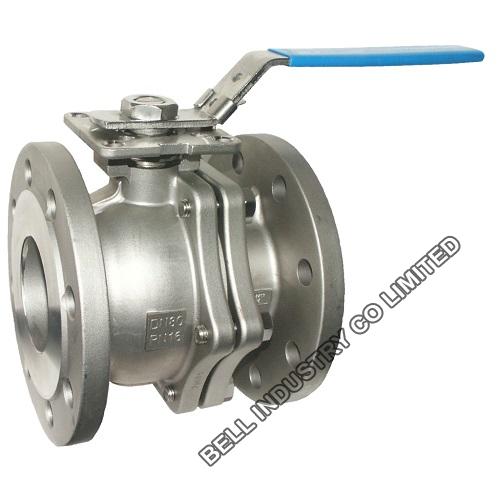

DIN PN16 Stainless steel flanged Ball Valve
- Design:DIN3357,EN12516
- Split body full port design
- Pressure Rating: PN16--PN40
- Face to Feace:DIN3202-F4, F5
- Description: manufacturer of DIN PN16 Stainless steel flanged Ball Valve,Flange Dimensions : DIN 2633-PN16. DIN2635-PN40,SPLIT BODY TYPE,FULL PORT DESIGN
-
DIN PN16 Stainless steel flanged Ball Valve Details:
-Design:DIN3357,EN12516
-Size:DN50--DN600
-Pressure Rating: PN16--PN40
-Material of Body: S.S 304, S.S 316
-Temperature range:-20°C to +200°C
-Ball: AISI316,
-Seat: PTFE, RPTFE
-Face to Feace:DIN3202-F4, F5
-End Flange:DIN2501,PN10-40
-Mounting Pad: ISO5211
-Inspection Testing:DIN3230/3,EN12266
-Fire Safe Test: API 607/API6FA
-Optional:electrical actuator,gearbox operation
-Length according to DIN 3202-F4 (DIN EN 558-1, row 14) (from DN 150 according to DIN 3202-F5, DIN EN 558-1, row 15),
-assembly flange conforming to ISO 5211 permits mounting of a drive
-lockable hand lever, please order padlocks separately
