Stainless Steel Flanged Valves

  • Stainless ANSI 150LB Flanged Ball Valve
  • Stainless ANSI 150LB Flanged Ball Valve
Stainless ANSI 150LB Flanged Ball ValveStainless ANSI 150LB Flanged Ball Valve

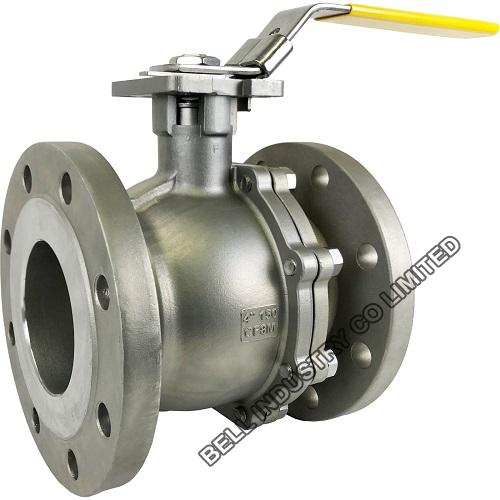

Stainless ANSI 150LB Flanged Ball Valve

  • Full Port for Unrestricted Flow
  • 316 Stainless Steel Body, Ball and Stem
  • Blow Out Proof Stem
  • RTFE Ball Seats Extend Cycle Life
  • Description: manufacturer of Stainless ANSI 150LB Flanged Ball Valve, two-piece ball valve with full port, floating ball and flange connection to ANSI 150# class.
  • INQUIRY   EMAIL

Stainless ANSI 150LB Flanged Ball Valve description:

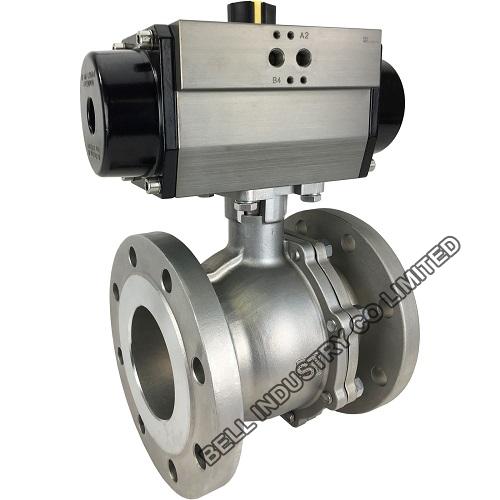

Anti-Static devices for 2PCS ball-stem-body; blow-out proof stem; ISO 5211 mounting pad for easy actuation; handle lever operated with locking device; full port(FB), RF flanged ends, ASME standard 150LB/ 300LB

-Design:API 6D, API 608, BS5351.
-Face to face dimension standard: ASME B16.10.
-Flange standard: ASME B16.5, ASME B16.47.
-Size:DN15--DN600
-Pressure Rating: 150LB,300LB
-Material of Body: S.S 304, S.S 316, WCB, GS-C25
-Ball: AISI316,
-Seat: PTFE, RPTFE
-Mounting Pad: ISO5211
-Inspection Testing:API 598, API 6D
-Fire-safe Design: API 607/6FA
