Cast Iron Valves

  • PN10 PN16 AS2638 Resilient Gate Valve-Ductile Iron GGG40-
PN10 PN16 AS2638 Resilient Gate Valve-Ductile Iron GGG40-

PN10 PN16 AS2638 Resilient Gate Valve-Ductile Iron GGG40-

  • Design Std: AS2638.2
  • Size:DN50--DN600
  • Pressure Rating: PN16
  • Face to Face: AS2638.1 & ANSI B16.10
  • Description: PN10 PN16 AS2638 Resilient Gate Valve-Ductile Iron GGG40, Designed and tested in accordance with AS2638.2; Size: DN50-DN600. Face to face: AS2638
  • INQUIRY   EMAIL

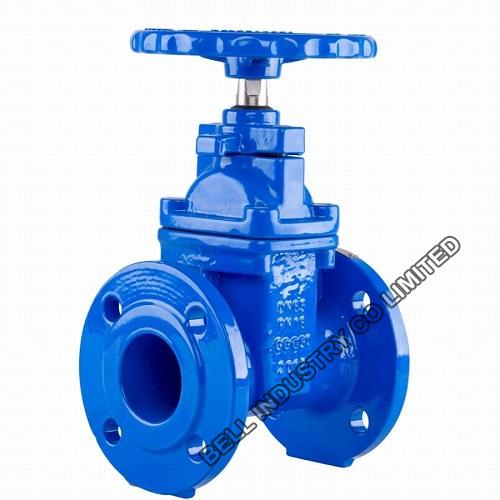

PN10 PN16 AS2638 Resilient Gate Valve-Ductile Iron GGG40-

Resilient seated ductile iron gate valve is manually operated by a non rising stem handwheel operation made in accordance with AS2638.2, used in waste water and water treatment industries.


-Design Std: AS2638.2
-Size:DN50--DN600
-Pressure Rating: PN16
-Seat: NBR,EPDM
-Face to Face: AS2638.1 & ANSI B16.10
-Ductile iron body and bonnet for high strength and impact resistance
- Ductile iron gate fully encapsulated in EPDM rubber to ensure tight seal
-Epoxy Coated To AS4158 300 μm minimum DFT
-Flange Ends:AS4087 & AS2129 Table E/D
-Hydraulic Test: ISO 5208
-Working temperature:-10 to +80℃
