Forged Steel Valves

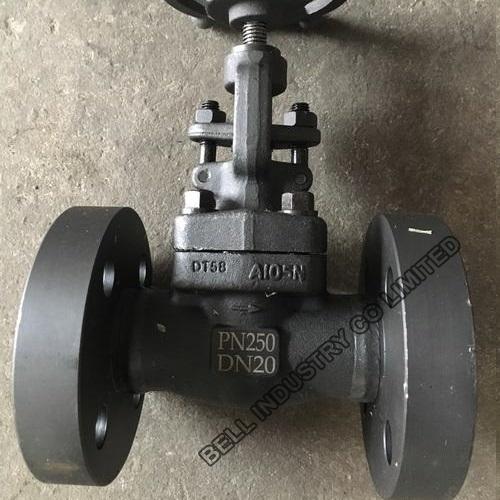

PSB pressure seal bonnet Globe Valve
- CAST OR CARBON ALLOY STEEL,
- OUTSIDE SCREW AND YOKE, RISING STEM,
- GUIDED SWIVEL PLUG DISC, WELDED-IN SEAT RING,
- GLAND REPACKING UNDER PRESSURE.
- Description: PSB pressure seal bonnet Globe Valve , Pressure Seal Bonnet Globe Valves. ASME B16.34/BS 1873. Cast or carbon alloy steel, outside screw and yoke, rising stem
-
PSB pressure seal bonnet Globe Valve
-Pressure Rating: Class 900.
-Nominal diameter: 1/2'' - 4''(DN8-DN100);
-Nominal pressure: Class150 - Class2500 (PN10-PN420);
-Main material: A105, LF2, F11, F22, F5, F304, F316, F304L, F316L, F321, F347, F51, Hastelloy C, etc.
-Body/Bonnet: ASTM A352 LCB.
-Operation: Hand Wheel.
-Connect Ends: Flange.
-Full port or reduced port design.
-Back seal design.
-Renewable seat or welding seat.
-Special Request: locking device (interlock), position indicator, limit switch.
-Design and manufacture: ANSI B16.34
-Test and inspection: API598
-Face to face dimensions: ANSI B16.10
-Flanged end: ANSI B16.5
-Butt-welding end: ANSI B16.25
