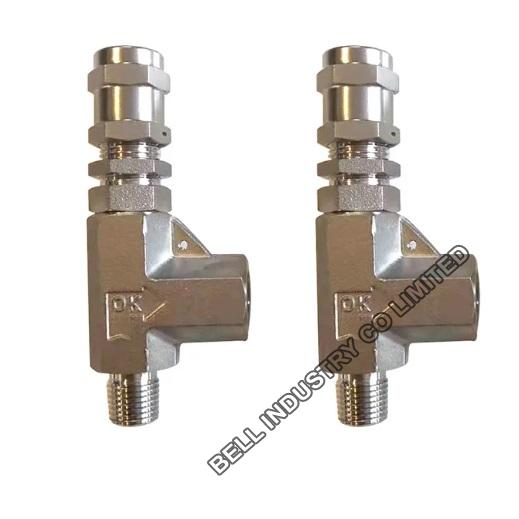

Stainless Steel Male to Female Adjustable Angle Relief Valve

Product Introduction

This industrial-grade stainless steel proportional relief valve offers dependable overpressure protection for critical instrumentation and high-pressure fluid systems. Designed in a compact 90-degree angle configuration with a male inlet and female outlet, it opens gradually to safely bypass excess system pressure. Featuring an adjustable spring bonnet and integrated panel-mounting nuts, this valve ensures precise setting repeatability in harsh liquid, vapor, or gas processing environments.

Technical Specifications

• Valve Type: Proportional Pressure Relief Valve / Safety Valve

• Body Configuration: 90-Degree Angle Pattern

• Material Construction: ASTM A182 F316 / F316L Stainless Steel

• Inlet Connection: Male Threaded (NPT / BSPT / G Thread)

• Outlet Connection: Female Threaded (NPT / BSPT / G Thread)

• Standard Sizes: 1/4", 3/8", 1/2" Male to Female ends

• Set Pressure Range: 10 psi to 6000 psi (0.68 bar to 414 bar) with interchangeable springs

• Spring Material: Heavy-duty 316 Stainless Steel / Inconel X-750

• Seat/Seal Material: Viton (FKM) / PTFE / PEEK / Kalrez (FFKM)

• Orifice Size: Available from 0.140" to 0.250" (3.6mm to 6.4mm)

• Flow Coefficient ($C_v$): From 0.20 to 0.60 based on internal orifice selection

• Adjustment Design: Internal adjustment nut protected by a leak-tight metal cap

• Mounting Feature: Dual hex nuts included for convenient panel-mount installation

• Maximum Back Pressure: Rated up to 1500 psi (103 bar) on the discharge side

• Operating Temperature: -10°F to 392°F (-23°C to 200°C) with standard Viton seals

• Body Manufacturing: CNC precision-machined from forged square bar stock

• Applicable Media: Corrosive fluids, liquids, air, steam, and hydrocarbon gases

• Testing Standards: 100% factory hydrostatic shell and bubble-tight seat tested per API 598

• Traceability: Heat code identification and pressure specs permanently laser-etched on body

• Design Guidelines: Engineered in compliance with ASME B16.34 and instrumentation standards

• Environmental Compliance: NACE MR0175 / ISO 15156 suitability available upon request
