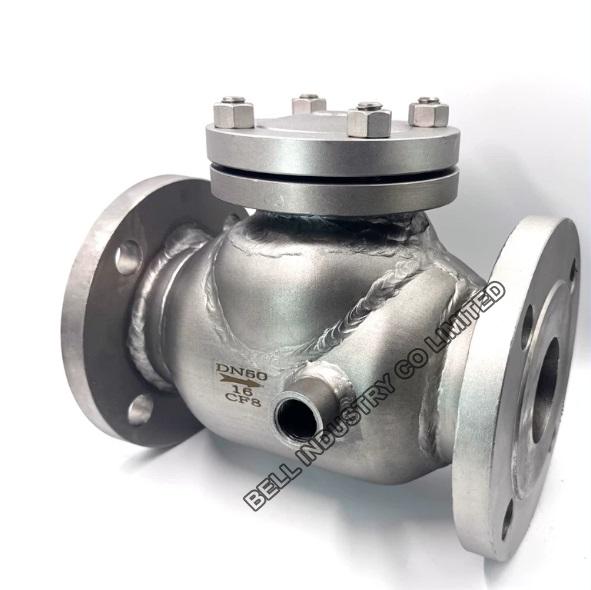

Stainless steel jacketed check valve flanged

This industrial grade flanged jacketed check valve is constructed from premium CF8 304 stainless steel to deliver reliable automatic backflow prevention for heavy process fluids Designed with a fully welded external heating jacket it allows hot thermal oil or steam circulation to maintain process temperatures and eliminate media crystallization around the internal disc This robust unibody construction ensures uninterrupted one way flow control for highly viscous fluids such as liquid asphalt molten sulfur polymers and heavy chemical resins

Technical Specifications

• Valve Design Classification Full Jacketed Swing Check Valve Non Return Valve Design

• Body Material Grade Stainless Steel CF8 ASTM A351 Specification

• Jacket Shell Structure Fully Welded External Thermal Insulation Jacket

• Nominal Pipe Dimension DN 50 or 2 inch equivalent line size

• Main Pipe Pressure Rating PN 16 Nominal Pressure 1.6 MPa equivalent

• Heating Jacket Pressure Rating PN 10 Max Operating Pressure 1.0 MPa

• Internal Disc Component Stainless Steel 304 Forged Disc with Precision Ground Seal

• Main Pipeline Connection RF Raised Face Flanged Ends

• Jacket Media Interface Threaded Female NPT or BSPT Ports 0.5 inch size

• Main Flange Standard EN 1092 1 DIN 2501 specification

• Bonnet Cover Design Bolted Bonnet Structure for Easy Inline Maintenance

• Body Bonnet Gasket Flexible Graphite Packing with Stainless Steel Metallic Core

• Flow Orientation Indicator Permanent Directional Arrow Cast on Jacket Exterior

• Casting Quality Process Advanced Precision Lost Wax Investment Casting Procedure

• Surface Cleaning Finish Uniform Mechanical Shot Blasting and Chemical Passivation Treatment

• Maximum Safe Working Temperature 350 degrees Celsius with standard graphite seals

• Minimum System Operating Temperature Minus 29 degrees Celsius safely

• Primary Media Applications Hot Thermal Oil Liquid Bitumen Molten Sulfur Viscous Resins

• Pressure Testing Protocol Rigorous Hydrostatic Shell and Seat Tightness Tests

• Quality Management Certificate Manufactured in Full Compliance with ISO 9001 standard
