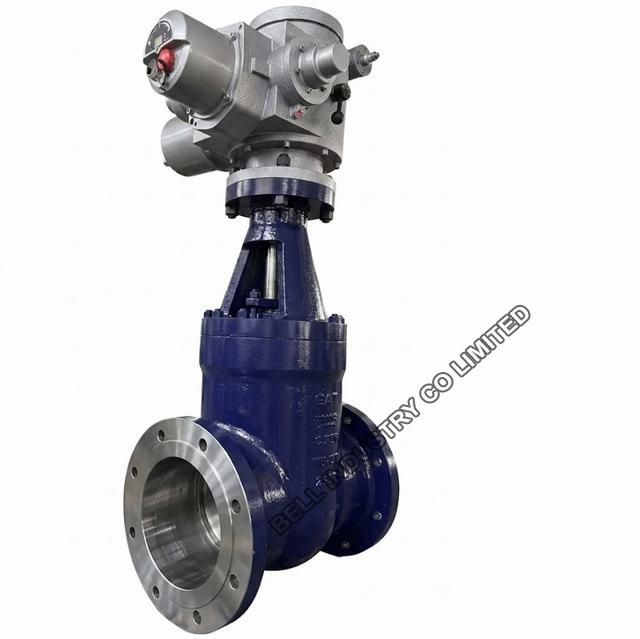

Z961Y High Temperature Motorized Wedge Pressure Seal Gate Valve

The Z961Y series electric motorized gate valve is an industrial-grade, heavy-duty solution engineered for critical isolation services in high-temperature, high-pressure piping systems of thermal power stations and petrochemical plants. Equipped with a high-torque intelligent electric actuator, it allows for smooth, automated remote operations. The advanced pressure seal bonnet utilizes internal fluid line pressure to compress the sealing gasket, ensuring absolute joint tight integrity under extreme thermal cycling and high-pressure differentials.

Technical Specifications

• Model Designation: Z961Y Series

• Valve Category: High Pressure Power Plant Gate Valve

• Actuation System: Multi-turn Electric Motorized Actuator

• Valve Design Type: Flexible Wedge Gate Design

• Bonnet Construction: Advanced Self-Sealing Pressure Seal Bonnet

• Shell Material: Carbon Steel / High-Temperature Alloy Steel

• End Connection Type: Butt Welded Ends (BW)

• Design Standard: ASME B16.34 / JB/T 3595

• Seat & Disc Facing: Hard-Faced with Cobalt-Based Stellite Alloy

• Flow Configuration: Full Port Bi-directional Flow Path

• Stem Configuration: Outside Screw and Yoke (OS&Y), Rising Stem

• Manual Override: Handwheel Device for Emergency Operational Needs

• Primary Working Medium: Main Steam, Superheated Boiler Feed Water

• Core Target Industry: Thermal Power Generation, Severe Utility Piping

• Pressure Rating Group: High Pressure Class Series

• Thermal Endurance: Engineered for Extreme Elevated Temperatures

• Testing Guidelines: Hydrostatic Shell and High-Pressure Closure Tested

• Seat Design Structure: Renewable or Welded-in Tough Seat Rings

• Yoke Adaptation: Heavy-Duty Flange Pattern Standard for Actuator Mounting

• Outer Coating: Heat-Resistant Industrial Protective Enamel

• Logistics Security: Beveled Welded Ends Fitted with Sturdy Plastic Caps

• Data Traceability: Permanently Stamped with Size, Pressure Rating, and Heat Number
