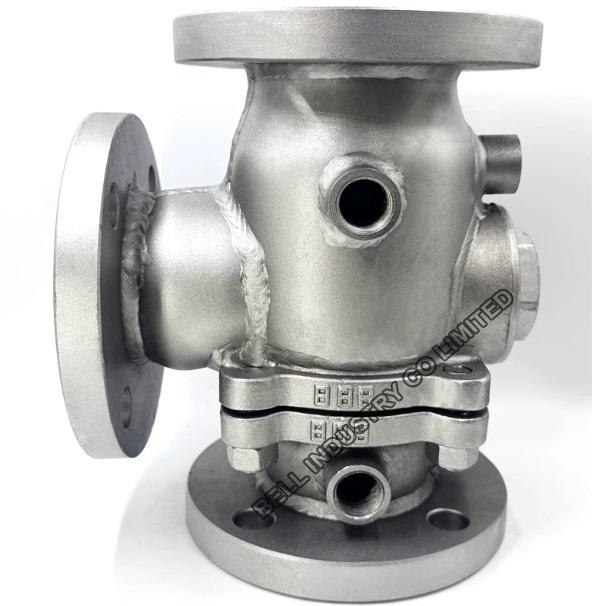

3-way jacketed ball valve metal seated

This professional grade three way flanged jacketed ball valve is constructed from premium CFeight stainless steel offering an ideal solution for diverting mixing or splitting high viscosity fluids Featuring a fully welded external jacket for steam or hot thermal oil circulation it keeps media at a constant liquid temperature to eliminate pipeline crystallization Equipped with precision engineered metal to metal hard seats this robust valve delivers dependable zero leakage shutoff and superior wear resistance under harsh thermal processing conditions where standard soft seated valves fail

Technical Specifications

• Valve Design Type Three Way Jacketed Ball Valve Diverting Mixing Configuration

• Body Material Standard Stainless Steel CFeight ASTM Athreefiveone EN one point fourthreezeroeight

• Jacket Enclosure Type Fully Welded External Thermal Insulation Jacket

• Internal Seating Profile Metal to Metal Hard Seal Stellite or Tungsten Carbide treated

• Ball Configuration Three Way Floating Ball with Hardened Surface Coating

• Flow Flowpath Profiles Available in T Port or L Port Flow Patterns

• Main Pipe Connection Raised Face Flanged Ends

• Jacket Media Interface Threaded Female NPT BSPT Ports half inch or three quarter inch Standard

• Main Flange Standard EN ten ninetytwo part one DIN twentyfive zeroone Oversized for bolt clearance

• Actuation Adaptability Direct Mount Top Flange Ready for Actuator Installation

• Stem Engineering Concept Internally Inserted Blow out Proof Stem Layout

• Primary Valve Seat Packing High Density Virgin PTFE Reinforced PTFE

• Stem Seal Construction Multi ring Self adjusting V Ring Packing Arrangement

• Internal Gasket Component Reinforced Flexible Graphite with Metallic Core

• Flow Orientation Indicator Permanent Directional Arrow Cast on Body Exterior

• Casting Quality Process Advanced Precision Lost Wax Investment Casting Procedure

• Surface Cleaning Finish Mechanical Shot Blasting and Chemical Pickling Treatment

• Primary Media Application Hot Thermal Oil Bitumen Molten Resins Heavy Viscous Polymers

• System Testing Protocol Rigorous High Pressure Shell and Seat Structural Tests

• Quality Management System Manufactured Under Certified ISO Nine Thousand and One Process Controls
