Cast Steel Valves

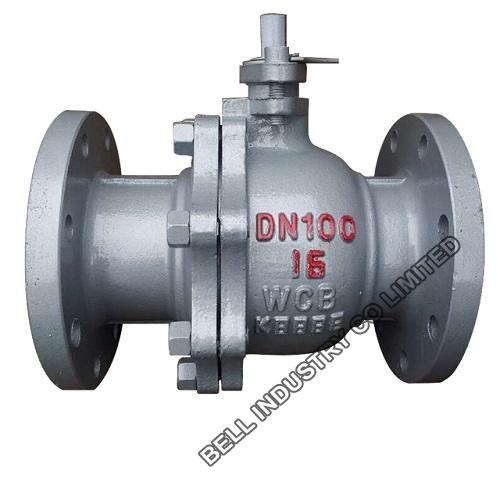

CAST STEEL BALL VALVE-FLOAT- DIN 3202 F4 F5-WCB-GSC25
- Size: 1/2"-10"(DN15-DN250)
- Pressure Rating: PN10--PN100
- Housing: Cast steel, ball: Stainless steel 1.4301, seal: PTFE / FKM
- Design & Manufacture standard: BS 5351/DIN3357/JIS B2071
- Description: CAST STEEL BALL VALVE-FLOAT- DIN 3202 F4 F5-WCB-GSC25, PN10, PN16, PN25, PN40,
-
CAST STEEL BALL VALVE-FLOAT- DIN 3202 F4 F5-WCB-GSC25
-Size: 1/2"-10"(DN15-DN250)
-Pressure Rating: PN10--PN100
-Housing: Cast steel, ball: Stainless steel 1.4301, seal: PTFE / FKM
-Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials).
-Design & Manufacture standard: BS 5351/DIN3357/JIS B2071
-Pressure & Temperature standard:DIN3230
-Face to face dimension standard: DIN3202 F4,F5,F7,F8
-Flange standard: DIN2543-2545-2501/JIS B2220
-Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
