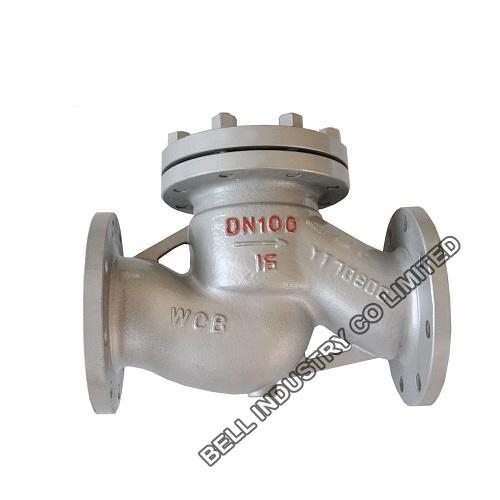

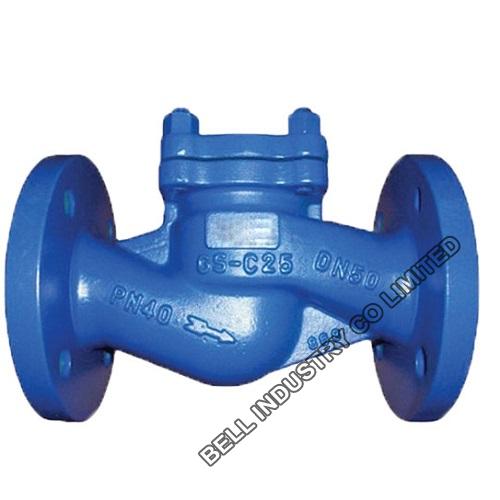

DIN CAST STEEL LIFT CHECK VALVE- DIN 3202 F1
-Size: DN15-DN300
-Design:BS:5160/ DIN:2401
-Materials:StandardA216 WCB / C22.8 (1.0460) / GS-C25 (1.0619) Low temperatureTSTE355 (1.0566)
-Cover – Carbon Steel BS EN 10028 161 – 430
-Disc – Stainless Steel ASME SA 487 CA6NM class A
-Seat Ring – Stainless Steel Casting to BS EN 10283 1.4408
-Face to face: DIN 3202 F1, F6
-Flanges: UNI EN 1092-2 PN 40, STD 2545 : PN-40 (R.F.).
-Dimension:DN 50 - DN 800
-Pressure class:PN 16 - PN 160
-Bolted cover, top and bottom guided disc
-These Valves should be installed with the Valve Head Vertical
-Flanges will be drilled unless otherwise specified on order
