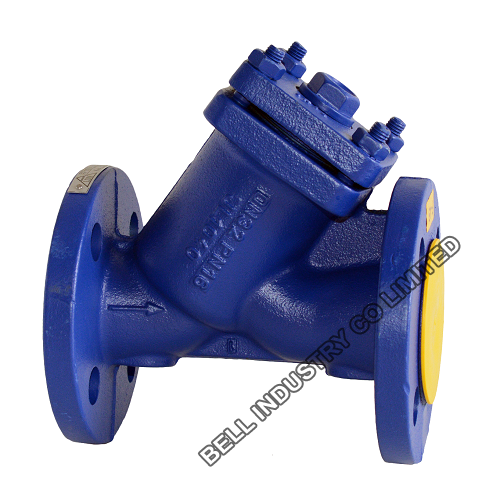

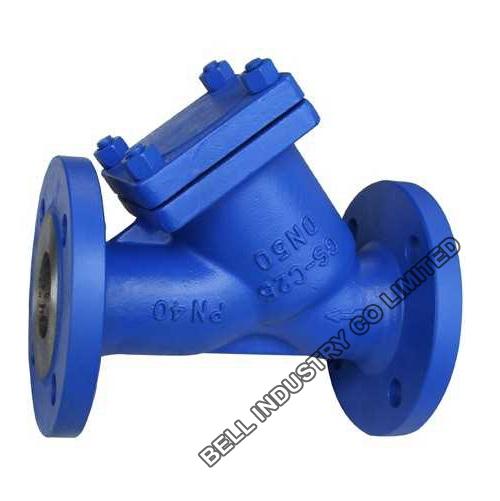

Cast Steel Y Strainer-DIN3202 F1-WCB-GSC25
DIN Stainless Steel Y strainer is used for filtering the mass particles inside the flow through the flow passing inside the steel filter chamber situated in the body,this Y strainer is great for waste water or other applications where straining needs to occur in an efficient and simple manner
-Design Std: EN 12334
-Size:DN15--DN300
-Body, bonnet: CF8/CF8M/CF3/CF3M, WCB, GS-C25
-Screen: 1.4304-ANSI 316 Stainless Steel
-Pressure Rating: PN16,PN25
-FLANGED: FLANGED TS EN 1092-2 / ISO 7005-2
-Face to Face: EN 558 Seri 1 / DIN 3202 F1
-Pressure Testing:DIN EN593/DIN EN12266-1
-Working temperature: Max. +200°C
