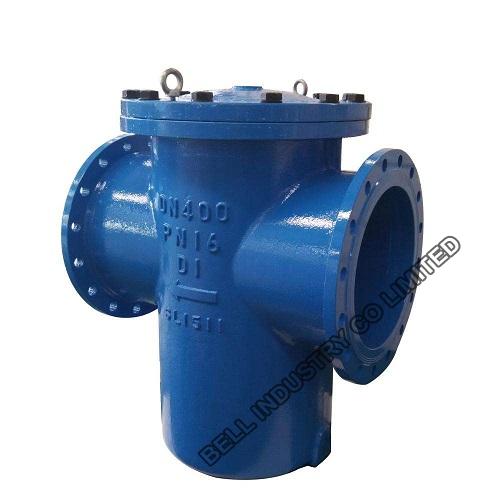

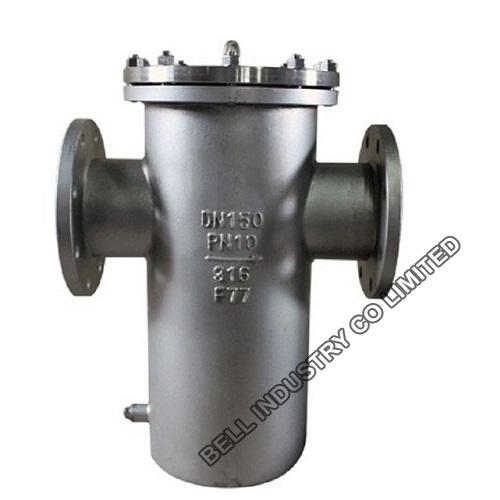

Basket Strainers PN10 PN16-Cast Steel
Straight type cast steel body strainer with AISI 304 strainer basket. With drain plug. Raised face flanged.
APPLICATION: Filtering of water, oils, non aggressive process liquids
in general etc.
-Size: DN15-DN600
- Basket or "U" Type, Steel Fabricated;
-10 Meshes to 200 Meshes;
- Drain Plug is optional;
-Stainless Steel renewable Screen
-With Drain Valves
- Quick Opening
- Compact Design
-Bolted Blind Flange Cover
-NPT Vent (1/2") and Drain or SW Vent (1/2") and Drain
-Perforated Basket
-Integral Seat
-Basket Type Structure
-Flanges Drilled: PN16(DN25-DN150), PN10(DN200-DN300)
-Pressure rating: PN16(DN25-DN150), PN10(DN200-DN300)
OPTIONS:
-Carbon Steel, Stainless Steel, Alloy Steel, Bronze;
-Hinged Cover;
-Cover Davit;
-ASME B31.3, B31.4,B31.8;
-Support Legs or skirt;
-DP Gauge Connect;
-DP Gauge/Switch;
-Air Release Head;
-Spiral Wound Gasket;
-Weld Neck Flange;
-Larger perf or Mesh Liner;
-Renewable mesh liner;
-Flanged Vent and Drain;
-Heavy duty baskets and wedge wire;
-Blow-down basket
