Cast Steel Valves

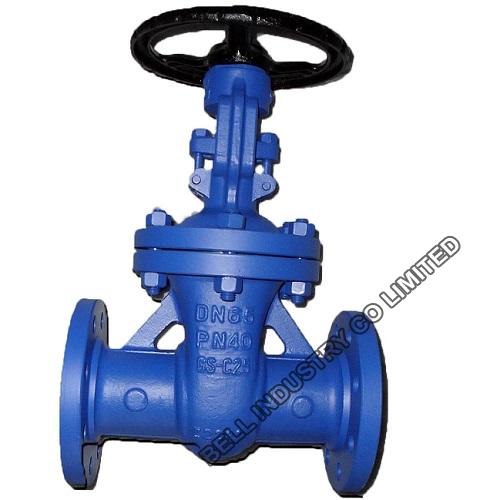

PN40 CAST STEEL GATE VALVE-DIN 3202 F7-WCB-GSC25
- Design & Manufacture:DIN 3352
- Face to face: DIN3202 F7
- Inspection and test: DIN3230
- Size Range: DN50 to DN600
- Description: PN40 CAST STEEL GATE VALVE-DIN 3202 F7-WCB- GSC25,Inspection and test: DIN3230 , Size Range: DN50 to DN600
-
PN40 CAST STEEL GATE VALVE-DIN 3202 F7-WCB-GSC25
-Size:DN50-DN600
-design standards: design in accordance to EN 1171,DIN3352
-face to face dimensions according to EN 558, basic series 15 (DIN 3202, F5,F4,F7)
-flange end connections EN1092-2, ISO2531
-pressure class: PN16,PN25,PN40,PN64,PN100,PN160
-test according: EN1074-2
-working temperature: up to +70 °C
-drilling of flanges: PN10/16/25/40/64/100/160, starting from DN200 - PN10, PN16
-body and bonnet: ductile iron EN-GJS-500-7
-wedge: ductile iron EN-GJS-500-7, EPDM coating
-stem: stainless steel AISI420
-coating: powder epoxy coating at least 250 μm thickness, color RAL5015
-bolts: stainless steel SS304/carbon steel
